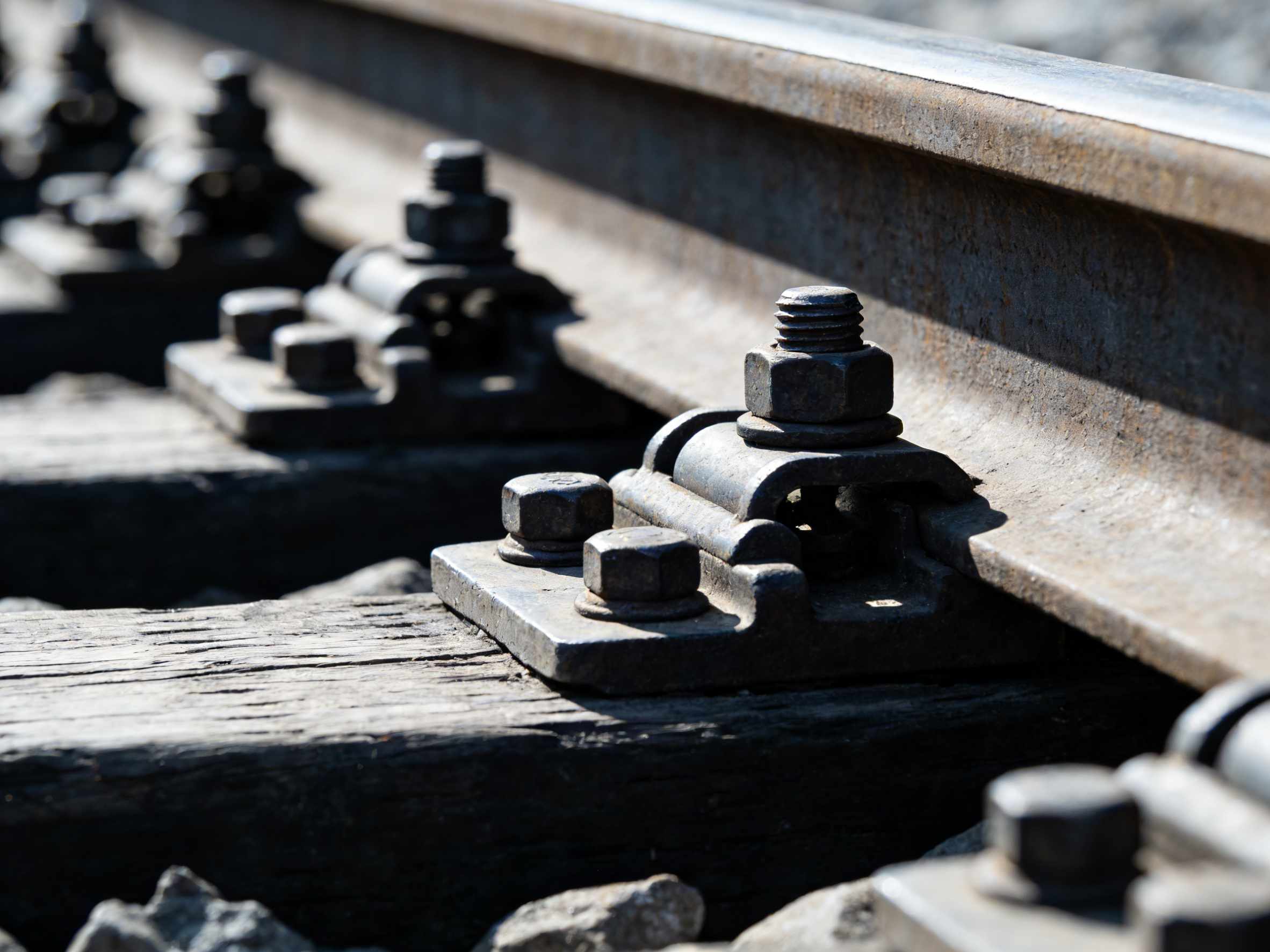

In the fast-changing field of global railway networks, track connectivity often depends on one key factor: the gauge. As projects cross different lands and old standards, the need for a flexible rail fastening option grows stronger. At SFFST, we have more than 40 years of know-how in rail transit gear. We tackle this issue directly with the Type V Fastening System.
Solving Complex Gauge Requirements Worldwide
Bridging the Gap Between International Track Gauges
Railway work often runs into problems with “poor fastener universality” when lines cross borders or update old paths with unusual gauge requirements. At SFFST, we fix this by adding modular elements to the Type V Fastening System. The track gauge becomes a simple setting to handle. With various Rail Gauge Baffles and Height Adjustment Pads, our team adjusts the setup. It covers narrow to broad gauges without rebuilding the whole track. This adaptability keeps the adaptable rail fastening system in line with the track’s middle, which supports safe and smooth rides.
Flexible Fastening Solutions for Global Connectivity
Our work in places like Thailand, Indonesia, and Saudi Arabia shows that no single approach works everywhere. The Type V Fastening System is often chosen for its strength in harsh spots while fitting local gauge requirements. We use our machine-driven lines to make all sorts and measures of parts. Thus, every project, no matter its location or technical details, gets a sturdy setup that follows area rules.
Understanding the SFFST Type V Fastening System

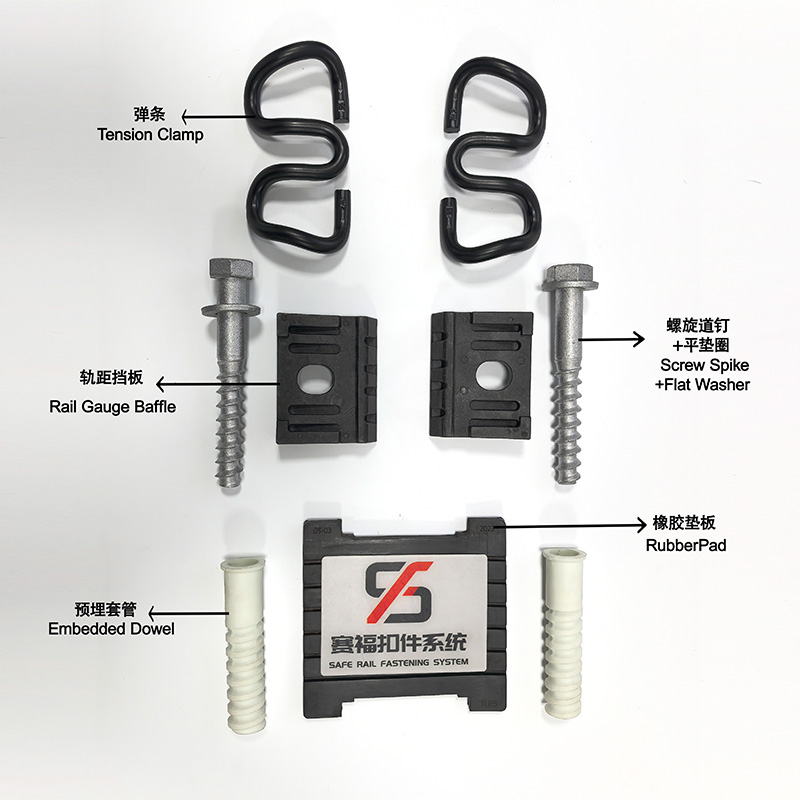

Core Components of Type V Fastening System
The Type V Fastening System consists of metal and non-metal pieces built for strong endurance.
- At its center, the Type V Tension Clamp delivers a firm grip and holds back rail movement along the length.
- For side forces, we use exact Rail Gauge Baffles and Rail Gauge Insulators, made on our modern molding and casting equipment.
- Under the rail, the Resilient Tie Pad—or Elastic Pad—acts as the main shock absorber. It takes impact to shield concrete sleepers.
- We fix these parts with tough bolts, nuts, and washers, all produced in our own plant for an exact match and solid build.
Optimized Design for Diverse I-Shaped Rail Profiles
Flexibility shapes our approach to design. In China, the Type V Fastening System follows the TB/T 3395.3-2015 rule. This makes it a top pick for 60 kg/m (P60) rails and tracks with concrete sleepers on ballast. Yet, we know that projects abroad often call for many kinds of I-shaped rail types. So, for global use, our system meets the EN 13481-2 D standard. Such matching lets the Type V Fastening System work with almost any I-shaped rail form, like UIC54 or UIC60, depending on the line’s needs. We tweak the shape of Rail Gauge Baffles and the firmness of Rail Pads to create a custom setup for each job.
The SFFST Logic for Customization
Engineering Consultation and R&D Driven Design
At SFFST, new ideas come from our International Joint R&D Center. We set it up with Shanghai University of Engineering Science. This group works on “Fostering Innovation” through skilled Fastening system consultation and Fastening system design help. When a customer brings a special I-shaped rail or exact gauge requirements, our experts run clear calculations on mechanics and check stress spread for the Type V Tension Clamps. This method makes our adaptable rail fastening options solid in theory and ready for actual use.
Precision Manufacturing for Site-Specific Needs

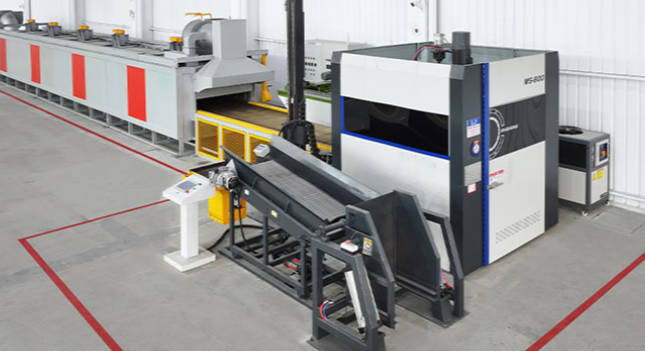

Custom work only succeeds with accurate making. In our 50,000 ㎡ square foot plant in Zhejiang, we run top Automatic Tension Clamp/Rail Clip Production lines and Injection Molding Production lines. These machines help us produce over 5 million sets of rail fastening systems each year. At the same time, they handle small runs of tailored items. Each Rail Gauge Baffle or Embedded Dowel gets checked by live computer controls. This keeps them within tight limits for varied gauge requirements.
Why Choose SFFST
One-Stop Service from Design to Operation
We go beyond just selling items. We give a full EPC+M+O (Engineering, Procurement, Construction, Management, and Operation) package. For jobs needing the Type V Fastening System, we cover everything from engineering advice to buying all parts, plus installation tools. Our Construction aid includes site guidance and staff training. This makes sure the adaptable rail fastening system goes in right for the job’s gauge requirements. Full handling like this keeps projects on schedule, in budget, and at peak quality.
Rigorous Testing in Advanced SFFST Laboratories
Each part of our fastening setups, from the Type V Tension Clamp to the Rail Pad, faces strict checks in our key labs. The Assembly Testing Lab has a Track Fastener Longitudinal Resistance Testing Machine and an Electro-Hydraulic Servo Rail Clip Fatigue Testing Machine. These let us mimic real stresses on the full system. Such setups confirm that every Type V Fastening System we send out hits world safety marks and client tech specs.
Conclusion
The Type V Fastening System shows our drive for “Fastening Excellence, Entire Solution”. It tackles ongoing problems with gauge mismatches and weak fastener fit. This lets rail teams create tougher, linked networks. Our skill in matching any I-shaped rail and handling strict gauge requirements means your work—be it high-speed, standard, or freight—rests on safe, fresh engineering.
As world rail paths keep growing, SFFST stays your steady teammate in linking places with smart builds and client focus. Contact SFFST today to discover how our Type V Fastening System can be tailored to your specific project requirements and experience the SAFE difference!
FAQ
Q: What is a Type V Fastening System?
A: The Type V Fastening System is a strong rail fastening tool made by SFFST. It holds I-shaped rail to concrete sleepers, mainly on ballasted tracks. It meets China’s TB/T 3395.3-2015 for 60 kg/m (P60) rails and EN 13481-2 D for worldwide use.
Q: How does rail gauge affect fastening choice?
A: Varying gauge requirements shape the side placement and load spread of the rail. A flexible setup like the Type V Fastening System lets us adjust parts such as Rail Gauge Baffles and Insulators. As a result, the rail stays fixed in place, whether the track runs standard, narrow, or broad gauge.
Q: Can your Type V fit different I-shaped rail profiles?
A: Yes. With our EPC+M+O way and R&D skills, we adjust the Type V Fastening System for many I-shaped rail types, like UIC54 and UIC60. We do this by changing part designs to fit the rail’s form and running setup.
