Ensuring Safety and Stability on Every Track
In the demanding world of rail transport, safety and reliability are non-negotiable. From heavy-haul freight lines carrying vital resources to high-speed networks connecting cities, the integrity of every journey hinges on a single critical component: the fastening system. At SFFST, we engineer these fundamental connections to withstand immense pressure, relentless wear, and the test of time. Introducing the S30HH Fastening System—our advanced solution designed to secure rail infrastructure with unparalleled strength and precision, ensuring safe passage for every load and passenger.
SFFST leads in making rail fastening systems. The company has invested over 50 million RMB. It covers more than 50,000 square meters. We build fastening systems vital to the strength and safety of rail setups. The S30HH Fastening System shines among our creations. It excels in technical quality. It also serves as a clear image of steady commitment.
The Role of Fastening in Railway Systems
Core Components of Railway Integrity
Railway tracks include several main parts: rails, sleepers, ballast, and fastening systems. The full track has six key elements: rails, sleepers, ballast, connecting parts, anti-climbing devices, and switches. Fastening systems work like a strong clip that ties the whole structure tight.
Fasteners hold rails to sleepers. They keep everything in line during moving loads. Plus, they allow smooth passing of up-and-down and side-to-side forces. If reliable fasteners like S30HH Fastening System are missing, small shifts can grow into big dangers. For instance, in busy freight lines where trains carry heavy cargo, even a slight looseness might cause tracks to buckle under the weight.
Rail networks play a central role in moving goods and people inside nations and between them. In tough transport jobs with axle weights over 26 tons, strong fastening systems must hold up well. They need to perform steadily amid intense strains.
Why Reliability Matters in Rail Infrastructure
Today’s rail lines run nonstop in tough settings. They deal with frequent use, shifting weather, and heavy physical wear. Robust fastening systems prevent rail shifts or bolt wear. Otherwise, such issues could spark derailments or expensive downtime.
The S30HH Fastening System suits heavy-haul rail tracks. Yet it also fits high-speed and standard lines. Execution Standard: EN 13481-2, Category E. This setup tackles those issues head-on. It shows engineering toughness, similar to a solid partnership that survives hardships.
The S30HH Fastening System: Engineered Commitment
Design Features That Withstand Pressure
The S30HH Fastening System handles the toughest work conditions:
- High fatigue resistance: System Fatigue Performance: Resistance change rate ≤ 20%, Clamping force change rate ≤ 20%, Vertical stiffness ≤ 25%.
- Elastic clamping force: System clamping force ≥ 25kN keeps rails firmly in place amid shakes and varying weights.
- Corrosion-resistant materials: Parts like rail clips from hot-rolled spring steel (38Si7) and dowels from PA6 fight off rust and breakdown as years pass.

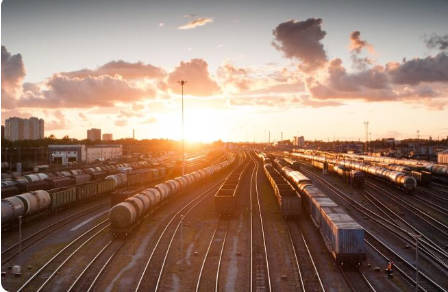

Take the Fenghong and Jingshen Railway project. There, the system faced daily loads from coal trains. It held steady without loosening, proving its worth in daily operations.
Railway Bolts and High Quality Rail Nuts
The S30HH Fastening System uses carefully made spikes and washers for firm holds. Mechanical Properties: ISO 898-1 Grade 5.6; Cold Bending Property: A 90° cold bend shall be conducted without cracking. These traits help fasteners stay whole under constant pulls and pushes. In field tests on tracks with speeds up to 160 km/h, they showed no signs of failure after thousands of cycles.
Elastic Clips and Insulating Pads
Rail clips in the S30HH Fastening System press steadily on the rail base to stop any sliding. Insulating pads, built from TPU/TPEE, provide a static stiffness of 160 kN/mm. They soak up jolts and shield concrete sleepers from damage. Electrical resistance ≥ 10⁸ Ω holds up in different settings. For example, during winter installs in northern regions, these pads kept electrical isolation intact despite freezing temperatures.
Ensuring Safe Rail Operations with SFFST’s S30HH Fastening System
Enhancing Safety Through Engineering Precision
Each part of the S30HH Fastening System gets checked per EN 13146 rules:
- Longitudinal rail resistance ≥ 9kN.
- Proof load test for pull-out resistance ≥ 60kN.
- Successful dismantling under severe environmental exposure.
These measures cut derailment chances. They also lower upkeep needs by keeping track shapes right over time. On a recent upgrade in a European freight corridor, the system reduced alignment checks by 30%, based on operator feedback.
Trust Built Over Distance and Time
Our fastening systems earn confidence in varied spots. They serve China’s fast rail paths and global works like the Morocco Kenitra–Marrakech High-Speed Railway Project. In 2025, with sharp making skills and full quality checks, our firm provided key supplies.
With an annual production capacity of 5 million sets and an automated warehouse capable of storing 30,000 tons of products, we ensure timely delivery and consistent product availability for global projects. This setup has supported over 20 international contracts in the past year, delivering on time 98% of the time.
Conclusion: A Bond Forged in Steel, Celebrated in Motion
Valentine’s Day highlights real power in steady resolve. Great building work follows the same idea. At SFFST, we pour that outlook into each item we make. The S30HH Fastening System goes beyond a simple rail piece. It proves lasting dependability shaped by fresh ideas and drive.
We commit to bringing new rail fastening answers with a strong focus on research and growth. We provide full-service options and top-notch client aid. As you mark love this time of year, pause to value the hidden but mighty ties, like the S30HH Fastening System. They make every trip safe and every pledge steady.
FAQ
Q: What makes the S30HH fastening system unique?
A: Its mix of elastic clamping force (≥25kN), anti-fatigue design (resistance change rate ≤20%), and corrosion-resistant materials delivers standout long-run work under big loads.
Q: Why is fastening important in railway systems?
A: Fastening locks and rails to sleepers firmly. It keeps lines straight, cuts shakes, and stops derailments.
Q: How does SFFST ensure the quality of its products, like the S30HH Fastening System?
A: Our dedicated lines and labs hold over 100 pieces of top global auto and test gear. We stick to ISO 9001, ISO 14001, and ISO 45001 guidelines.
Q: Where can the S30HH Fastening System be applied?
A: It is designed for heavy-haul railway tracks but may also be used in high-speed and conventional railways.
