What is a fish plate?

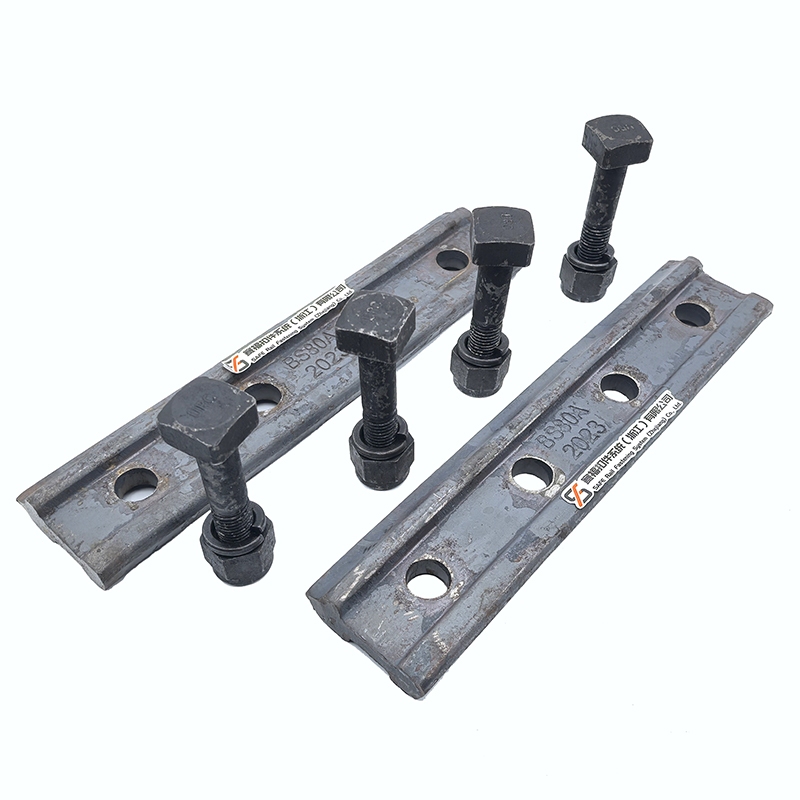

A fish plate, joint bar, or splice bar is a metal component to join two rail sections. It is typically bolted to the ends of two rails to maintain alignment and ensure structural continuity. Through encasing the joint between two rail ends, fish plates redistribute loads and stresses, averting misalignment and potential failure in the rail structure.
General Uses in Railway and Structural Structures
Fish plates are standard components of most railway systems, including normal rail, high-speed rail, metro rails, and heavy-haul freight systems. They serve mechanical as well as safety functions by providing smooth transitions between the sections of the rail. Apart from railway uses, fish plates also have applications in structural engineering for connecting steel beams or other bearing members. SAFE offers fish plates under its Metal Parts product group, under its full range of railway fastening systems. Our company manufactures products that are designed to be durable and precise to meet the high standards of modern railway structures.
Points to Consider
Material Quality and Durability
The material used in manufacturing fish plates must possess excellent tensile strength and resistance to fatigue. Typically made from rolled or forged steel, the components must be capable of withstanding dynamic loads of incoming trains without deforming or cracking under use. In selecting a fish plate, always opt for one that meets industry-grade standards in terms of mechanical strength. SAFE’s fish plates are produced from robust steel materials that undergo strict quality control processes in their advanced manufacturing lines.
Compatibility with Rail or Structure Type
Not all rails are equal—rail profiles vary by location and use (e.g., UIC60, 50kg/m). It is therefore essential that the fish plate is of the exact rail profile of the joining rail. Incorrect matching can result in uneven stress distribution or even derailments. SAFE provides custom-made solutions applicable to different track systems such as Conventional Rail, High-speed Rail, Metro & Intercity Railway, and Heavy-haul Rail. All of their engineers ensure that each fish plate perfectly fits with its corresponding type of rail.
Load-Bearing Capacity Requirements
Fish plates need to be capable of supporting vertical loads from train weight and lateral forces in motion. Design would include axle load ratings, train speed, and environmental factors like temperature variations. The process of product development of SAFE is done considering these aspects to offer high-performance products with performance capabilities exceeding standard load-carrying capacities.
Corrosion Resistance Features
Railway conditions expose metal parts to moisture, chemicals (from de-icing chemicals), and extreme heat. Galvanizing or epoxy coatings that are corrosion-resistant contribute significantly to service life. SAFE provides surface treatment options for its metal parts, such as anti-corrosion coatings that achieve maximum longevity even in harsh operating conditions.
SAFE Fish Plates Overview
Introduction to SAFE Products
SAFE Rail Fastening System (Zhejiang) Co., Ltd. is a credible producer specializing in railway fastening systems. They produce various kinds of products, including fish plates, bolts, clips, nuts, washers, and assembled fastening sets for diverse kinds of railway infrastructure projects. SAFE’s Metal Parts line includes fish plates created with precision machining processes and strict adherence to global standards.
Why Choose SAFE for Your Needs
What sets SAFE apart is that they boast quality control, customization, and end-to-end support from design to delivery. They offer EPC+M+O (Engineering Procurement Construction + Manufacturing + Operation) services, which enable project execution for clients worldwide. Whether you need stock models or customized designs modified to specific rail profiles or loading conditions, SAFE offers reliable solutions backed by technical expertise.
Technical Specifications to Check
Standard Dimensions and Sizes
Fish plates come in varying lengths (typically 600mm to 1000mm), thickness, and hole patterns depending on the rail type. Check against your project size before buying. SAFE offers standard sizes fitting correspondingly worldwide rail profiles and custom sizes as an optional order.
Bolt Hole Alignment and Spacing
Correct bolt hole spacing ensures effective stress distribution along the joint. Misligned holes in the wrong location can lead to improper clamping force or even be damaging when in place. SAFE ensures precise bolt hole drilling by utilizing CNC machining technologies, which offer flawless mating rail alignment.
Surface Finishing and Coating Choices
Hot-dip galvanization or epoxy paint surface finishes resist rust and add additional aesthetic appeal. These surface finishes also reduce maintenance cycles in the long term. Several coating options are offered to clients by SAFE based on the levels of environmental exposure in which the installation will be made.
Installation and Maintenance Tips
Proper Installation Procedures

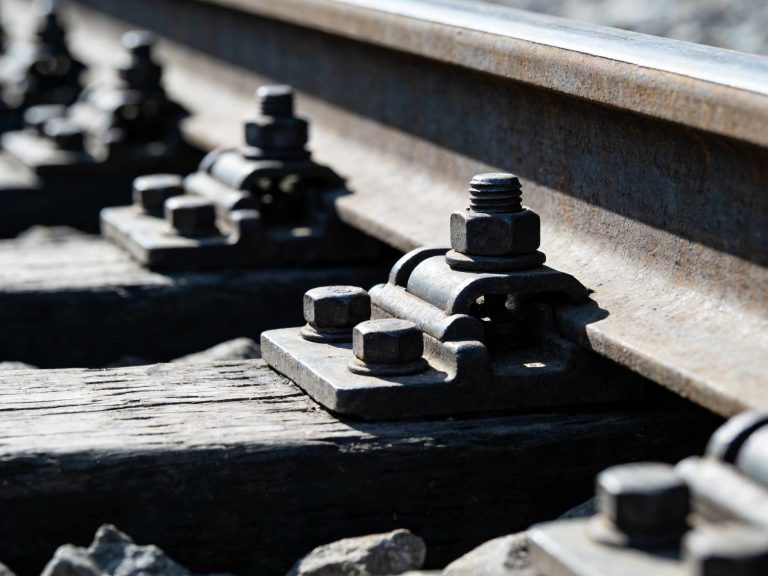

Ensure that the rail ends are cut cleanly with no burrs before fitting the fish plate over them. Secure bolts with calibrated torque wrenches to avoid over-compression that might lead to plate deformation or under-tightening that would loosen with time. SAFE recommends using their corresponding nuts and bolts with their fish plates to offer the most satisfactory performance compatibility within their Rail Fastening System products, like E2007 Fastening System or W14HH Fastening System, based on your application needs.
Regular Inspection Guidelines
Regular inspections should also include examining for cracks around bolt holes, corrosion signs on surfaces, vibration effects loosened bolts, or other visible deformation caused by heavy loading. Use ultrasonic inspection tools if necessary for the detection of internal flaws not visible from surface visual inspection practices advocated in SAFE’s technical guide provided at the point of purchase.
Replacement of Worn-Out Indications and Criteria
Replace any fish plate that shows cracks near bolt holes or deep corrosion pitting, weakening the structure. Replace also based on deformation, altering the contacting surfaces between rails, resulting in an irregular transition during the passage of the train. SAFE offers post-sales support, like having spare parts available so you can replace depleted pieces promptly without hesitation in procuring them.
Compliance and Industry Standards
Global Standards of Applicability
Fish plates must be in accordance with global standards such as AREMA (American Railway Engineering & Maintenance-of-Way Association), EN (European Norms), UIC (International Union of Railways), or GB/T standards applied in China, depending on deployment sites. SAFE manufactures products to these standards, assuring global compatibility in infrastructure developments across the globe.
Certifications: SAFE Fish Plates Meet
All SAFE products undergo thorough laboratory tests like tensile strength tests, fatigue analysis simulation, corrosion resistance test, among others—assuring compliance with ISO-certified quality management systems for use on the railways globally.
Cost Considerations and Budgeting
Price Ranges by Type or Size
Prices vary depending on the grade of material (carbon steel versus alloy steel), sizes (length/thickness), surface treatments done (galvanized versus painted), amount bought (bulk rate applicable), and other factors like customization needs. Contact SAFE directly via email at info@sffst.com for specific quotes based on your specific project requirements, including volume-based price models available through accredited dealers globally.
Long-Term Value of Quality Products
Even if cheap alternatives may seem like a viable option at first glance—high replacement/maintenance downtime due to lower material quality/workmanship fault not found in high-quality solutions like those offered by SAFE’s design engineers whose primary concern is long-lasting nature/longevity while creating components like fish plates specially tailored for the reliability long-term success criteria alignment with internationally accepted standards compliance guarantee assured with every order placed today tomorrow both!
FAQ
Q: Is it possible to use a generic fish plate on any rail type?
A: No. Use only a fish plate design that is compatible with your own rail profile for safety reasons—talk to SAFE’s technical specialists for guidance if unsure about compatibility concerns in advance!
Q: What are SAFE’s fish plates coated with?
A: Galvanizing or epoxy coatings by exposure to the environment—special orders also catered to upon confirmation of order receipt!
Q: Can bulk discounts be offered?
A: Yes! Request volume-based rates directly from info@sffst.com for project-specific needs!
