With more and more live-in modern cities, demand for efficient and eco-friendly rail transport is higher than ever. But controlling noise and vibration remains one of the greatest challenges. Train vibrations can weaken building foundations, and continuous noise pollution damages public health. Floating slab mat systems are an answer in the making—allowing engineers to design quieter, safer, and stronger railways.
Introduction to Floating Slab Mat Systems
Why Vibration and Noise Control is Important
Increasingly dense modern cities are spreading urban development far beyond the boundaries of traditional central business districts. With this urbanization comes an increased need for effective, low-impact rail transit systems. Yet, perhaps one of the most ongoing problems is mitigating the noise and vibration emitted by trains. Excessive vibration threatens structural integrity in the long term, while ongoing noise pollution adversely impacts the health and quality of life of surrounding residents.
The Increasing Demand for Urban Rail Transit
As rail lines have been made closer to homes and commercial buildings, control solutions for noise and vibration have never been more important. Urban planners and engineers now place utmost importance on systems not only delivering secure transportation but also causing the least environmental disturbance.
Meet the Floating Slab Mat Solution
In response to these requirements, we at SAFE deliver a bespoke solution: the floating slab mat system. This revolutionary technology highly reduces the transfer of vibrations from rail tracks into surrounding structures. By integrating our advanced materials and engineering expertise, our floating slab systems strike the ideal balance of performance, durability, and value.
What Is a Floating Slab Mat System
Definition and Key Components
The floating slab mat system is a vibration isolation system specifically designed for railway infrastructures. It consists of:

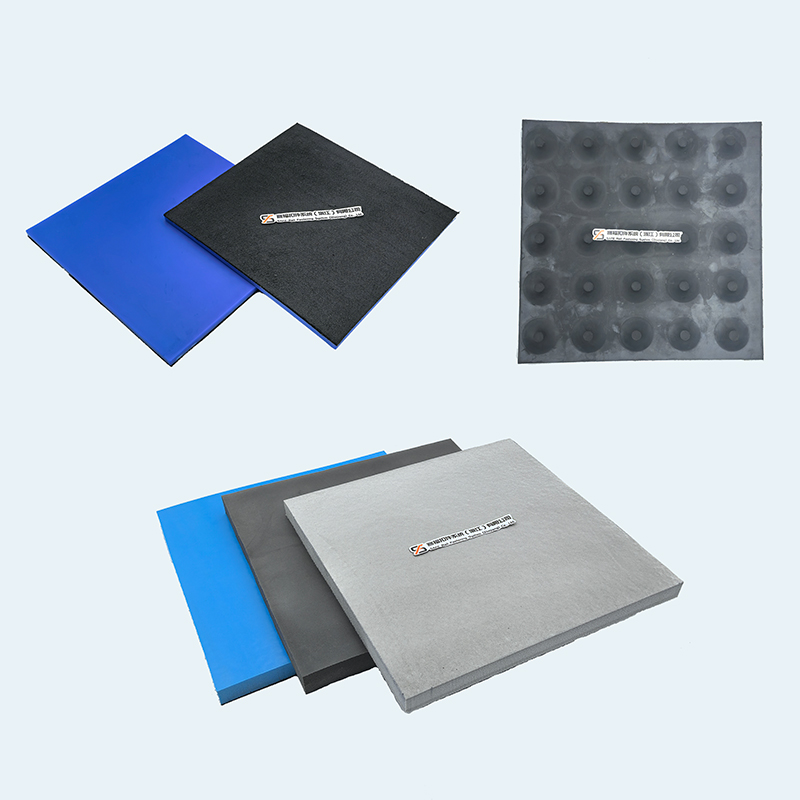

- Reinforced Concrete Slab (Inertia Block)– adds mass and stability.
- Elastic Layer (Mat or Pad)– absorbs and dissipates vibration energy.
- Supporting Base or Subgrade– structural foundation.
This setup isolates the track from the foundation, strongly restricting vibration transmission.
How It Is Different from Conventional Track Systems
Classical ballast or fixed tracks pass vibrations directly into the ground. Floating slab mats, however, separate the track and create a damping system that protects nearby buildings and delicate installations.
How Floating Slab Mats Work
The Role of Inertia Blocks in Isolation
The inertia block or the concrete slab is a mass element that is resistant to motion. Its weight helps to damp out high-frequency vibrations due to moving trains. With elastic supports below, it serves as a mechanical filter that inhibits energy transfer.
Role of Elastic Layers in Damping Vibration
The elastic layer—usually designed from rubber or polymer material—is where most of the damping occurs. The layer is very slightly compressed under load, dissipating kinetic energy as little heat rather than allowing it to propagate through neighboring structures.
Combined Effect for Maximum Noise Reduction
Together, the inertia block and elastic mat constitute a tuned mass-spring-damper system that is very capable of isolating vibration over a broad range of frequencies. This combination not only protects infrastructure but also results in quieter rail transit operation—a critical characteristic in densely populated urban areas.
Applications in Rail Transit Infrastructure
Application in Subway and Light Rail Systems
Subways and light rail transit typically run below or along residential districts. Our Floating Slab Mats system is especially applicable to such applications due to its heavy-duty design and high isolation performance. It is designed for high-load-bearing capacity floating slabs with excellent vibration isolation performance in large areas.
Advantages for High-Speed Rail Projects
High-speed trains generate harsher dynamic loads than conventional rail cars. For such demanding applications, our products are designed for modular adjustability with steady isolation performance. These pads can be installed with deliberate placement to customize performance based on specific project requirements.
Retrofitting Existing Tracks
If complete reconstruction cannot be achieved, our underlayment products such as the Floating Slab Mats provide cost-effective retrofitting solutions to upgrade vibration isolation.
Benefits of Floating Slab Mats
Enhanced Ride Comfort and Safety
By minimizing vibration induced by the track, floating slab mats assist in making for smoother rides with lower rolling stock component wear. Travelers experience fewer bumps, and operators have longer maintenance cycles.
Long-Term Durability and Low Maintenance
We engineer our products with long-term durability in mind. For instance, our Floating Slab Mats utilize specially formulated rubber compounds that are resistant to environmental exposure degradation, compression set, and aging. It translates into lower lifecycle costs compared to traditional isolation methods.
Environmental and Community Benefits
Our floating slab mats help to reduce one of the most common complaints related to railroad infrastructure: noise pollution. By addressing this challenge at its source, our systems ensure better community relations and the fulfillment of sustainable urban development goals.
Why Choose SAFE for Your Project
Proven Track Record of Success in International Projects
Our slab mat floatation systems are in successful service in most of the metro systems in Asia, Europe, and North America. Their field applications testify to their efficiency in different operating conditions—ranging from tropical to seismically active areas.
Engineering Support and Technical Expertise
We do not simply provide products; we make available complete engineering solutions backed with years of experience in railway component production. Our experts provide turnkey support—from site survey to post-installation monitoring—to ensure the success of your project.
Commitment to Innovation and Quality

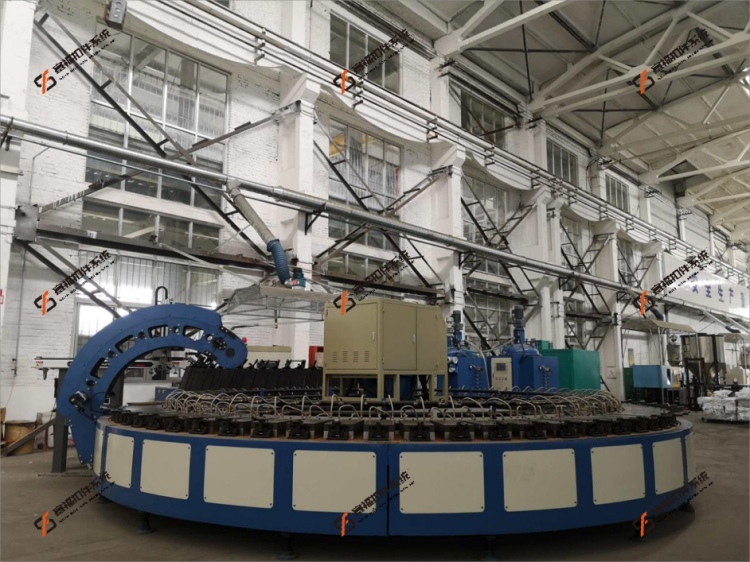

As a leading producer of railway fastening systems and non-metal products like vibration and noise reduction systems, we continuously invest in R&D efforts to stay ahead of the curve. Every one of our products undergoes rigorous testing to conform to international standards like ISO 9001 and EN 13146/13230 series certifications.
Customization Options Based on Project Needs
We understand that every project has particular requirements—whether soil, train speed, or structural. It is for this reason that we offer customizable solutions in our entire line of products. Our engineers collaborate closely with customers at the planning stages to ensure maximum incorporation into any infrastructural plan.
FAQ
Q: Are floating slab mats installable on existing tracks?
A: Yes. Our products are particularly well-suited to retrofit uses where full reconstruction is not possible but increased vibration control is necessary.
Q: How long do your floating slab systems last?
A: In service conditions, our mats typically survive 25–40 years with minimal maintenance owing to the durable elastomeric materials used in their production.
Q: Do your products conform to international safety standards?
A: Absolutely. All products are manufactured under strict quality control processes that comply with international railway safety standards, such as ISO certifications.
Q: What type of trains can be upgraded using these systems?
A: Our systems are so universal that they can be used by subways, light rails, commuter trains, and high-speed rail lines with speeds over 300 km/h, and also benefit from improved stability through our technologies.
