Understanding Track Deformation
Why Track Deformation Occurs
Deformation monitoring is a long-term rail infrastructure condition, resulting from the accumulated dynamic load imposed by trains, external influences such as temperature and water ingress, and recurrent ballast shift. Recurring stress over time due to rail traffic causes track bed instability, especially if the ballast—crushed stone upon which the rails are positioned—is unrestrained.
Impact on Rail Safety
Track geometry deformation causes misalignments that form significant safety hazards, such as derailment or violent vibration. Deformation also accelerates rail fastener and sleeper stress, quickening wear and life deterioration of components. Deformations, however small, can cause costly maintenance cycles and service disruptions if not checked.
Normal Means of Preventing Deformation
Conservative techniques for preventing track deformation include regular tamping to return ballast to position, geogrids or mats placed to support the area, and improvement in drainage facilities. All these temporary solutions require regular maintenance and do not remove the underlying cause of the problem—the free movement of ballast.
What Are Ballast Baffles
Structure and Materials of Ballast Baffles

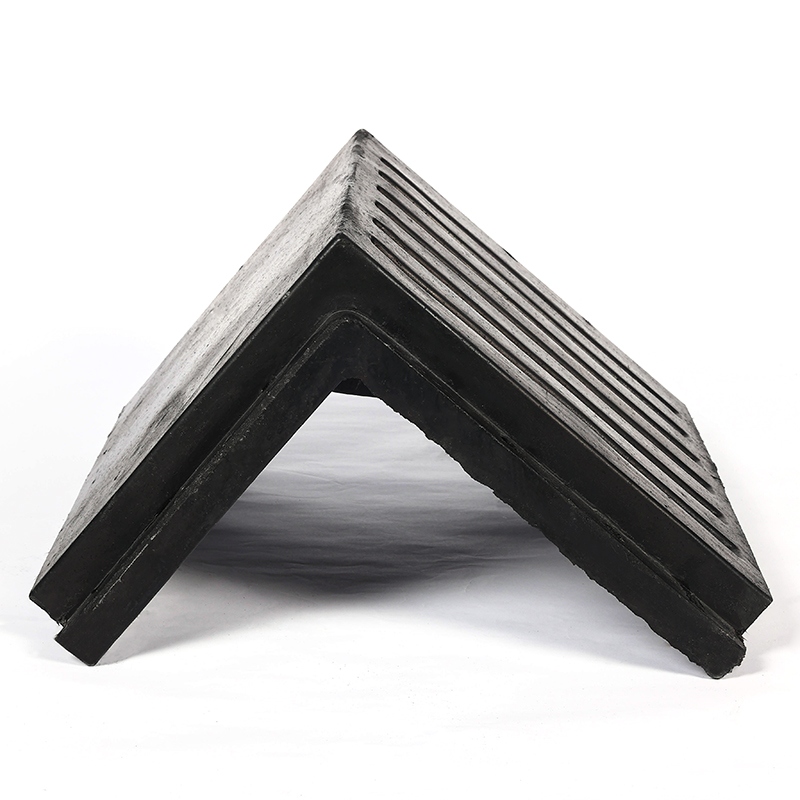

Ballast baffles are specially designed items that encapsulate and stabilize ballast in the track bed. Made of resilient rubber or polymer composite material, the baffles are fastened with sleepers or under-rail fasteners to prevent lateral migration of ballast grains. Having an elastic yet hardy constitution, they are capable of bearing mechanical stress and retaining shape over a long period of time. We at SAFE manufacture high-performance rubber-based rail accessories for long-term performance and durability. One such item in particular that we manufacture is our Rubber Ballast Baffle. We manufacture it from premium rubber compounds to offer elasticity, aging, UV, and weather protection.
How SAFE Ballast Baffles Work

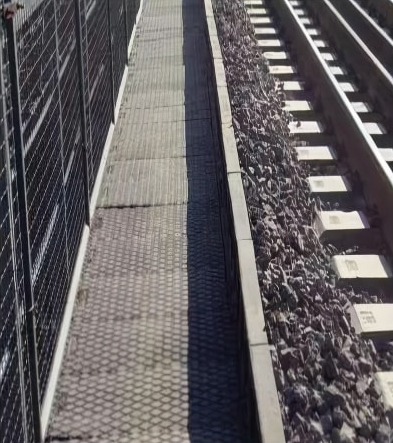

SAFE’s Rubber Ballast Baffle does this by forming a physical barrier over the sleeper ends or by exciting the rail base area, hence imprisoning the ballast. Our baffle system provides permanent track geometry with minimal human involvement by averting lateral displacement of stone particles due to the transit of trains or environmental changes. The void-formation prevention is ensured by the containment system, one of the main reasons for vertical deformation.
Advantages Over Traditional Solutions
Compared to traditional reinforcement technologies like geotextiles or multi-cycle tamping, SAFE’s ballast baffles provide the following advantages:
- Low maintenance, long-term stability
- Rapid installation without the need for specialized equipment
- Interoperability with the rail structures installed
- Enhanced water drainage through the planned gaps in the Baffle panels
Our products not only ensure performance but also usability requirements on varied grounds and climatic conditions.
How Our Ballast Baffle System Works
SAFE’s containment system functions through three simple mechanisms:
- Physical Barrier Creation: The baffles form a rigid wall along the rail base and sleeper ends, encapsulating ballast particles and holding them away from critical support areas.
- Pressure Distribution: Withstanding the ballast, the system equalizes pressure evenly over sleeper bases, restricting both lateral movements and vertical settling.
- Integrated Drainage Management: Ingeniously designed gaps in the baffle panels allow unimpeded draining of water while preventing clogging by debris and soil washout—addressing both ballast movement and damage due to water.
Driving Higher Rail Lifecycle through SAFE Baffles
Optimizing Track Stability over Time
By effectively managing ballast performance under varying loads, SAFE’s Rubber Ballast Baffle extends total track stability from years to months. Its elasticity is dynamically adjusted without cracking or becoming stiff—without loss of performance even after extended periods of exposure.
Decreasing Wear on Rail Components
Stable track means less vibration transfer to rail, clips, sleepers, and joints—radically minimising fatigue-related damage. By having all components accurately aligned using controlled ballast movement, our solution greatly minimizes mechanical wear on all fronts.
Long-Term Infrastructure Health Support
SAFE’s approach is less about stop-gap measures and more about long-term, robust infrastructure health; we gain sustainable infrastructure health through intelligent design. Our rubber baffles reduce dependency on heavy machinery interventions like tampers or regulators—both reducing the environmental footprint as well as enhancing operational efficiency.
Savings Maintenance Costs with SAFE Technology
Fewer Repairs and Service Interruptions
As part of its inherent function, deformation control, our Rubber Ballast Baffle significantly reduces instances requiring emergency repair or service disruption caused by out-of-alignment tracks. Customers also report extended time periods between maintenance checks on regular installations.
Savings Labor and Equipment Fees
Conventional maintenance requires groups of staff running high-cost tamping machines on an ongoing basis—an expensive activity in the long run. By restricting such treatments to an absolute minimum with passive stabilizing devices like our rubber baffle system, drivers can see enormous annual cost savings.
Long-Term Return on Investment
Although initial cost might seem relatively higher compared to conventional alternatives like geotextiles or gravel shoulders alone, SAFE products achieve unprecedented ROI through fewer labor hours, fewer part replacements, greater component life expectancy—and most importantly—improved safety records.
Installation and Compatibility of SAFE Baffles
Easy Integration with Existing Tracks
SAFE’s Rubber Ballast Baffle is simple to install on new construction and retrofit. No special equipment needs to be bought; it installs quickly over common sleeper sizes with pre-engineered interlocks. Ideal for swift deployment within planned downtime windows.
Applications for Multiple Rail Environments
Whether passenger trains operate at high speeds or heavy freight lines transporting record weights, our rubber baffles perform consistently in a range of applications thanks to their robust material construction that meets international testing standards.
Maintenance-Free Design Features
An installation point done correctly, according to our guidelines online on our official website, our baffle system requires no extra care other than the occasional visual inspection—making it essentially maintenance-free throughout its lifespan.
Environmental and Operational Benefits
Green Use of Material by SAFE
We achieve performance at SAFE without giving up on sustainability. All our rubber solutions, e.g., Rubber Ballast Baffles, are manufactured with environmentally friendly processes through recyclable pathways wherever feasible. This aligns with efforts towards cleaner infrastructure development globally.
Improved Drainage and Erosion Control
Unlike rigid plastic guards, which encapsulate water under sleepers and form erosion threats in the long run, our rubber compound provides natural water draining and preserves washout-off soil along critical zones—a consideration not generally made by conventional systems.
Enhancing Overall Track Performance
By increasing travel smoothness as a result of enhanced alignment retention, reduced noise through the damping effect, Rubber Ballast Baffles on SAFE contribute directly to increased passenger comfort levels and rolling stock efficiency gains without trading off long-term asset value to operators around the world.
FAQ
Q: Why is rubber superior to other materials in ballast baffle applications?
A: Rubber provides the ideal combination of toughness, flexibility, and resistance to the elements. It is still elastic in the presence of extreme temperatures, will not crack or become hard like plastics, and is superior to solid materials in damping vibrations.
Q: SAFE Rubber Ballast Baffles have an average lifespan of how many years?
A: Our baffles are configured for a life span of over 25 years with minimal degradation over time. The material is subjected to UV radiation, temperature, and oxidation aging test cycles to ensure long-term performance.
Q: Can the baffles be installed without railroad special equipment?
A: Yes. Ease of installation is considered in our design using standard tools. This allows quick deployment within regular maintenance windows with no need for expensive special equipment or highly trained personnel.
Q: Are the baffles self-sustaining, requiring no maintenance after they’re installed?
A: Practically none. Once installed correctly, the system is maintenance-free, except for periodic visual inspection to ensure it stays in place. This is a significant advantage over traditional practices that require ongoing re-tamping.
Q: How soon can we actually expect to see a return on investment?
A: The majority of clients see measurable savings within 12-18 months from reduced maintenance frequency. The overall ROI is achieved in 2-3 years, and the system then continues to offer pure savings through its decades-long life.
