Role of Rubber Strips in Rail Systems
Role of Rubber Strips in Fastening

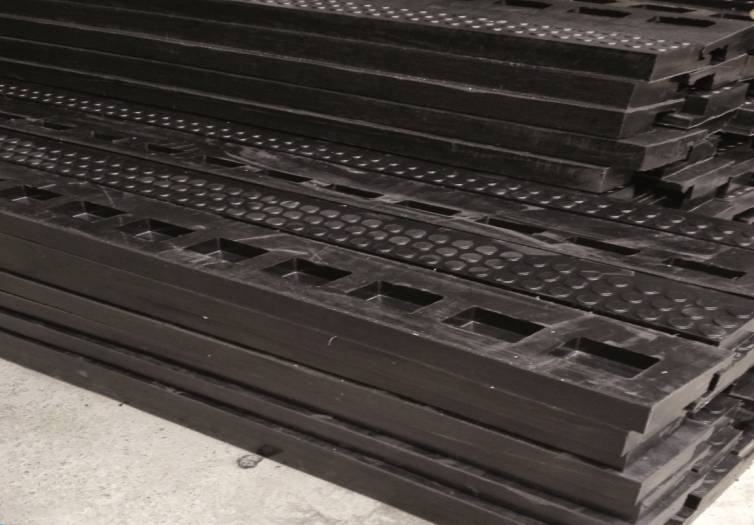

Rubber strips are an element of modern railway fastening systems, applied as intermediate pieces between steel plates or concrete sleepers and rails. Rubber strips are specially designed pieces that are meant to create a stiff but yielding bond in order to facilitate the dynamic forces caused by approaching trains. Rubber strips applied in rail solutions are utilized as necessary isolation materials in order to prevent direct metal-to-metal contact, causing unwanted wear and probable system failure. The primary role of rubber strips in fastening systems is not shock absorption. Rubber strips dissipate the concentrated load from the foundation of the rail over a wide area of the supporting structure, reducing stress concentration that would compromise track integrity. It is due to rubber strips having this fundamental load redistribution role that they are a critical component in providing stable track geometry under varying traffic conditions.
How Rubber Strips Absorb Vibration
Train running creates intense vibrations that have the potential to propagate through track structures and affect surrounding infrastructure. Rubber strips are excellent vibration dampers due to their elastic nature and the ability to convert the kinetic energy of train-caused vibrations into thermal energy, which is dissipated harmlessly. This energy conversion is provided by the rubber material’s molecular structure, wherein polymer chains are distorted and displaced under dynamic loads. The vibration absorption mechanism is shear deformation and compression of the rubber strip material. When a train wheel rides over a rail section, the impact causes vibrational waves that travel along the rail structure. Rubber strips dampen these vibrations and diminish their amplitude through internal friction in the polymer matrix, thereby reducing the transferred energy to the support structure beneath.
Role in Noise Reduction
One of the critical functions performed by rubber strips in rail use is noise isolation. The acoustic properties of rubber materials are the reason for their capacity to reduce sound, particularly high-frequency sound, as a result of wheel-rail interaction. Rubber strips minimize direct mechanical contact between rails and supporting structures, thus limiting structure-borne noise transmission that would otherwise be achieved through rigid connections. Later models of rubber strip employ specially compounded recipe formulations tailored to acoustic optimization. These are extremely effective at sound energy absorption across a broad spectrum of frequencies, and they dampen railway operation noise in urban settings where acoustic pollution is the main concern.
Safety Benefits of Rubber Strip Use
Enhanced Track Grip and Stability
Rail stability directly affects rail safety, and rubber strips are crucial in maintaining the rails in their correct positions under running loads. The frictional characteristics of rubber compounds provide additional traction between fastening components, preventing rail movement, causing track misalignment, or gauge variation. SAFE rubber strip products are actually formulated to provide consistent frictional performance throughout a series of environmental conditions. The consistency ensures that track stability is preserved across all climatic conditions and variations in seasonal temperatures so that the operator gains consistent performance throughout the life of the installation.
Preventing Loosening of Fasteners
Slackening of fasteners is a major rail safety issue since it can lead to rail movement or failure of the track. The issue is addressed by rubber strips, which subject the fastening elements to permanent pressure and therefore prevent incremental loosening by dynamic load cycles. The elastic return characteristic of sound rubber strips ensures that fastening pressure will be comparatively uniform, even when other parts in the system will experience negligible dimensional change due to thermal expansion or mechanical wear. Such uniform pressure retention is necessary for reliable operation over long periods and for safe operation.
Reducing Wear and Tear on Parts
Component life directly affects system reliability and the cost of maintenance. Rubber strips significantly reduce wear on rails and fastening hardware by avoiding direct metal-to-metal contact and impact loads by absorbing them. Rubber’s protective action increases the life of expensive rail infrastructure components. Decrease in wear benefit of rubber strips compound over time, resulting in the form that there are fewer replacement cycles for parts, resulting in fewer windows for maintenance and more availability of the track for revenue service. Such financial benefit renders rubber strips an investment value proposition for railway companies with emphasis on lifecycle cost optimization.
Material Properties of SAFE Rubber Strips
Durability and Weather Resistance
SAFE manufactures rubber strips from advanced polymer compounds that are directly developed for use in railways. They are resistant to environmental elements like ultraviolet light, ozone, heat, and cold, and chemical contamination caused by railway operations. The endurance characteristics of the SAFE rubber strips are due to specially selected base polymers and specific additives that ensure weather resistance. This formulation approach offers performance stability in a broad spectrum of climatic conditions, ranging from arctic to tropical climates of high humidity and temperature fluctuations.
Elasticity and Load Distribution
The elasticity properties of the SAFE rubber pads are engineered so that they offer maximum load transmission and are sufficiently stiff to provide the cause of track support. The material’s elastic modulus is engineered so that it compresses with normal operating loads sufficient but not so as to permit excessive deformation, posing the threat of compromising track geometry. Load distribution capability is determined by both rubber compound formulation and the physical shape of the strip design. The latter is designed by SAFE to produce uniform stress distribution along the contact area with reduced peak stresses that are likely to precipitate premature failure of support structures.
Compatibility with Other SAFE Products
SAFE’s systems approach to rail track fastening systems means that rubber strips are designed to be completely compatible with the other items in their product range. This includes dimensional tolerances, material characteristics, and assembly procedures, with the customer being supplied with complete system solutions instead of separate components. Chemical stability of SAFE rubber strips against other components of the system prevents degradation as a result of incompatible material associations. Systematic product development such as this ensures long-lasting reliability and optimal performance of the complete fastening system.
Installation and Maintenance Aspects
Easy Integration into Rail Systems
SAFE rubber strips are designed for simple mounting with standard railway construction equipment and procedures. The strips are precisely cut to accept common rail profiles and fastening elements correctly, minimizing installation potential and decreasing the risk of assembly errors. SAFE rubber strip installation techniques are standard in the industry, with no requirement for specialist equipment or training beyond that normally related to railway construction skills. This makes the products very flexible for new build applications as well as maintenance schemes where speedy installation is paramount.
Maintenance Requirements Over Time
High-performance rubber strips also have low maintenance requirements compared to alternatives; hence, the lifecycle cost is minimized for rail operators. SAFE rubber strips are engineered to maintain their performance properties throughout design service life without the need for periodic adjustment or replacement of worn parts. Normal maintenance includes visual inspection under normal track maintenance windows, and replacement is only recommended when strips are heavily worn out or damaged. This low-maintenance characteristic of rubber strips also makes them extremely appealing to remote or heavily trafficked rail corridors where maintenance access is not straightforward.
Inspection Tips for Long-Term Use
Sound practice of inspection ensures optimal performance and safety throughout the whole service life of rubber strip installations. Areas to be checked are signs of compression set, surface cracks, or edge deterioration that can indicate oncoming end-of-service situations. Periodic servicing also needs to check that rubber strips are correctly positioned in the fastening system and haven’t been shifted by dynamic loading or heat action. Displacement or misalignment shall be corrected immediately to allow proper load distribution and prevent excessive wear of surrounding components.
Environmental and Operational Benefits
Performance Under Extreme Conditions
SAFE rubber strips perform as expected under extreme environmental conditions in global railway use. Whether one operates in sub-arctic temperatures below -40°C or desert conditions with temperatures above 60°C, these products maintain their inherent qualities and continue to provide efficient load distribution and vibration decoupling. The chemical composition of SAFE rubber strips involves temperature-resistant polymer systems that are immune to low-temperature brittleness and possess adequate stiffness at elevated temperatures. Such temperature stability ensures consistent performance irrespective of geographical location or season.
Contribution to Sustainable Infrastructure
Sustainability is increasingly used to guide infrastructure choices, and rubber strips play a role in environmental stewardship by several mechanisms. The longer lifespan of rubber strips means less material used and waste produced compared to alternatives that need to be replaced more often. In addition to that, the noise and vibration damping provided by rubber strips contributes to reducing the environmental impact of rail transportation, particularly where noise is an issue and sound pollution is a concern. Such a green benefit is in line with the general sustainability objectives for the development of transportation infrastructure.
FAQ
Q: What is the common service life of rubber strips on railways?
A: Premium rubber strips such as those produced by SAFE will generally achieve 15-20 years’ lifespan under standard conditions of working, but actual performance will be dictated by traffic loading, atmospheric exposure, and maintenance regimes.
Q: Are rubber strips compatible with all rail fastening systems?
A: SAFE produces rubber strips that are compatible with most standard rail fastening systems, both elastic and rigid in nature. Specific compatibility will need to be verified according to the particular fastening system and service conditions.
Q: Rubber strips are contrasted with other isolation materials in the following ways?
A: Rubber strips offer superior vibration isolation, weathering, and durability compared to most other materials, and at a comparable level of performance over their installed life.
Q: What kind of maintenance are rubber strip installations subjected to?
A: A minimum of maintenance is required except for frequent visual inspection within regular track maintenance works. Replacement would normally only be warranted if strips are seriously deteriorated or damaged.
Q: Are SAFE rubber strips suitable for high-speed rail applications?
A: Yes, SAFE rubber strips are capable of satisfying the severe requirements of high-speed rail systems, with uniform performance under the high dynamic loads and frequencies of high-speed running.
