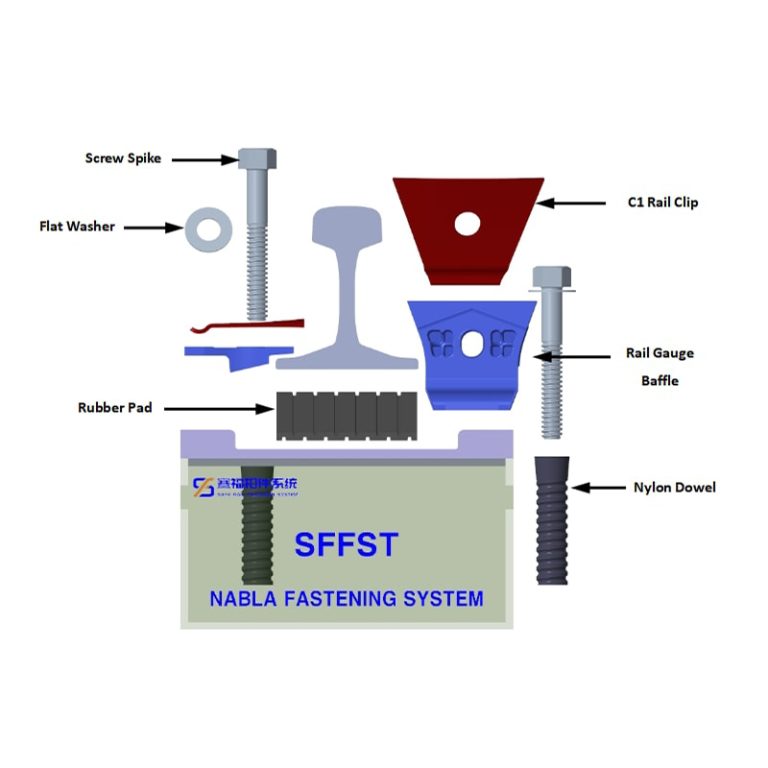

Configuration Table and Description of Fastener Components for Individual Sleeper
| No. | Item | Specification | Quantity/Pcs | Material | Description |
| 1 | Rail Clip | C1 | 4 | 60Si2Mn/Other Hot-Rolled Spring Steel | ①Hardness：41～46.5 HRC
②Fatigue Performance：200 million cycles。 |
| 2 | Screw Spike | Tr 22X160 | 4 | Q235-A | ①Mechanical Properties：Grade 4.6 or Grade4.8.
②The threaded portion shall be coated with lubricating oil prior to fastening the rail clip. Lubricating oil may also be injected into the sleeve. |
| 3 | Flat Washer | Ø50XØ25X3 | 4 | Q235-A | – |
| 4 | Rail Gauge Baffle | – | 4 | PA66+30%GF | ①Plastic Rockwell Hardness：≥ 105HRR；
②Complies with impact test requirements. |
| 5 | Rubber Pad | – | 2 | Rubber | ①shore A：≥ 65；
②Electrical resistance：≥108Ω； ③Static stiffness is designed according to the line requirements. |
| 6 | Nylon Dowel | – | 4 | PA66+30%GF | ①Tensile Performance: The component shall sustain no damage after being subjected to a 60 kN tensile test；
②During fastening, if the spike threads are not oiled, a small amount of lubricant must be injected into the dowel. |
Indicators of NABLA C1 Rail Clip Fastening System
| Execution Standards | EN 13481-2 | Railway applications – Rail -Performance Indicators of fastening system concrete sleepers fastening system | ||||
| No. | Items | Performance Indicators | Test Method | Note | ||
| 1 | Maximum axle load | 26t | / | |||
| 2 | Minimum curve radius | R150m | / | |||
| 3 | Speed | ≤ 100km/h | / | |||
| 4 | Longitudinal rail resistance | ≥ 7kN | EN 13146-1 | |||
| 5 | Torsional resistance | √ | EN 13146-2 | |||
| 6 | Attenuation of impact loads | ＞ 30% | EN 13146-3 | |||
| 7 | System Fatigue Performance | Dual rail gauge | ≤ 6㎜ | EN 13146-4 | / | |
| Resistance change rate | ≤ 20% | EN 13146-1 | ||||
| Vertical stiffness | ≤ 25% | EN 13146-9 | ||||
| Clamping force change rate | ≤ 20% | EN 13146-7 | ||||
| 8 | Electrical resistance | ≥ 5kΩ | EN 13146-5 | |||
| 9 | Effect of exposure to severe environmental conditions | Successful Dismantling | EN 13146-6 | |||
| 10 | Proof load test for pull-out resistance | ≥ 60kN | EN 13146-10 | |||
