Rail terminal safety is a top priority for operators across the globe. In the event of faulty braking systems or human error, the results can be disastrous. That’s why the rubber backstop, a straightforward but critical piece of equipment, is the ultimate protector. In this in-depth guide, we are going to learn about what rubber backstops are, why they are so vital to railway safety, and why SAFE‘s solutions excel compared to others.

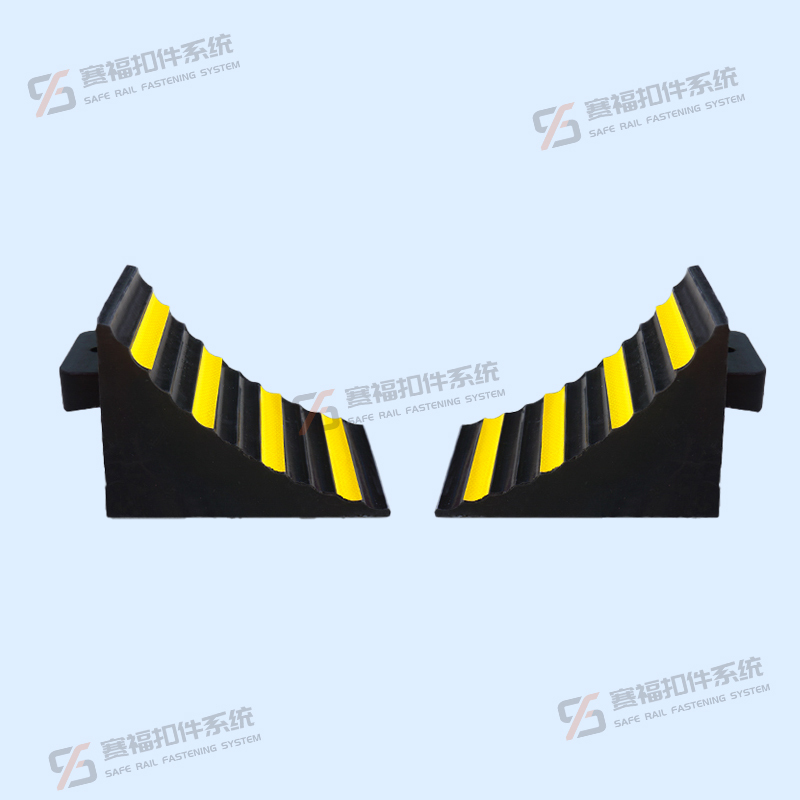

What is a Rubber Backstop?
A rubber backstop is specialized protective gear installed at the terminal end of rail tracks, at the maintenance yards, and other vulnerable areas. The prime function of the rubber backstop is to absorb kinetic energy and arrest overrun rolling stock smoothly, without resulting in damage to buildings or injury to humans.
Simple Construction and Materials
SAFE rubber backstops utilize high-performance industrial elastomers, chosen for their excellence in:
- Elasticity and Strength: Compress on impact and then spring back to the original form.
- Durability: Wear-resistant, deformation-resistant, and weather-resistant.
- Reinforced Design: Often includes embedded steel plates or composite cores to absorb severe loads without compromising structural integrity.
As part of our entire portfolio of Transportation Facilities Products, they’re built for reliability in the most demanding rail environments.
Importance in Transportation Safety
Preventing Overruns and Catastrophic Accidents
The most vital role of a rubber backstop is preventing overruns at dead-end tracks and terminal stations. As a yielding barrier, it forms the ultimate defense against collision or derailment with foreign objects, significantly reducing the risk of catastrophic accidents.
Shock Absorption and Vibration Damping
Rubber is a natural damper. During a low-impact impact, energy is absorbed by the backstop, protecting the undercarriage of the train and track structure. It saves long-term maintenance costs by lessening fatigue wear on surrounding track components, similar to our proprietary Resilient Tie Pads and Vibration and Noise Mitigation Systems.
Protecting Infrastructure and Rolling Stock
By bringing a vehicle to a controlled stop, rubber backstops prevent costly destruction of station infrastructure, maintenance equipment, and trains themselves. This protection is required to ensure continuity of operation and financial integrity.
Application Scenarios in Rail Transport
Use in Terminal Track Ends
Terminal track ends are probably the most common locations where rubber backstops are installed. Such terminals experience a lot of train traffic with little room to slow down, and hence, heavy end-of-track protection is needed. Our rubber backstops offer repeatable performance even in multi-hit conditions typical in such terminals.
Installation in Maintenance Areas
At maintenance shops or yards where wagons or locomotives are pushed slowly or with manual force into place, rubber backstops provide an added safety feature by preventing accidental overtravel into equipment bays or personnel spaces. Our Transportation Facilities Products also include products such as Plastic Road Cones and Warning Columns, which might be used in addition to rubber backstops for additional visual demarcation in maintenance space.
Integration with Other Safety Systems
Rubber backstops can be combined with other passive safety systems like reflective stickers, traffic sign boards, or convex mirrors to design integrated safety zones around weak points of infrastructure. Strategically located in coordination with other SAFE products like Rail Gauge Baffles or Insulation Buffer Pads, they belong to an extended safety ecosystem for use by contemporary rail networks.
Benefits of SAFE Rubber Backstops
Durability and Long-Term Performance
Our rubber backstops are not only lifetime products in even the most hostile environments but also utilize advanced high-performance rubber compounds that resist cracking, UV degradation, oil immersion, and temperature extremes—factors most influential on product life when installed outdoors. One aspect of our commitment to quality in every product line—ranging from fastening systems like E54AV Fastening System to non-metallic products like Rail Pads—is the implementation of rigorous material selection criteria that guarantee reliable long-term field performance.
Compatibility with Varied Rail Infrastructures
No matter if your facility includes generic gauge railway lines or customized industrial sidings, SAFE’s rubber backstops can be configured to fit several different installation footprints. Modular construction allows for easy adjustments without the need for extensive revisions to existing infrastructure designs. This modularity is an extension of our total portfolio philosophy—being able to offer scalable solutions from Type I Fastening Systems through WJ-8 Fastening Systems, and being capable of being compatible with multiple track formats.
Environmental Resistance Characteristics
Our solutions are constructed not only for mechanical strength but also for environmental durability. Elastomers employed are resistant to water, resistant to corrosion by deicing salts, ozone, and microbial growth—better suited for all-year-round outdoor exposure without compromising on performance.
Installation, Maintenance, and Compliance
Installation Best Practices
SAFE rubber backstops are solidly bolted onto concrete foundations or steel brackets using high-strength bolts. Alignment is crucial to achieve maximum energy absorption. We recommend fitting them with Reflective Stickers or Plastic Sign Boards from our product range for improved visibility.
Maintenance and Routine Inspection
lInspections: Regularly inspect surface cracking, compression set, bolt status, and material hardening.
lMaintenance: Free units from debris and periodically tighten anchor bolts. On any significant impact, a detailed inspection is recommended.
lSupport: Our technical support team is available at info@sffst.com to aid in the creation of personalized inspection routines.
Meeting Industry Standards
Our manufacturing process is ISO-approved, and each production batch is put to the most demanding tests (compression set, thermal ageing, chemical resistance) to ensure its conformity to the stringent requirements of global rail operators.
The Future of Rail Safety
The future of rubber backstops is intelligent. SAFE is in the process of integrating IoT sensors into these passive products so that impacts and structural soundness can be monitored in real-time. This technology will enable predictive maintenance and real-time damage notification, paving the way to intelligent, safe rail terminals and yards.
FAQ
Q: Where would I put a rubber backstop?
A: Terminal tracks, depot buffers, workshop entrances—any location where trains must stop safely in closed space conditions without colliding with nearby structures or people areas.
Q: What is distinctive about SAFE’s rubber backstop?
A: Our modules consist of industrially graded elastomers that are real-rail tested for longevity under true rail conditions, as well as with different anchoring systems employed by the world’s railway infrastructures—supported by seasoned support from a mature manufacturer of whole fastening systems as well as transportation safety devices.
Q: Are other safety devices permitted to be used alongside the rubber backstop?
A: Yes. Utilize them together with visual aids like Reflective Stickers or Warning Columns from our library on our website for peak visibility and operational legibility in buffer areas.
