What Is a Rail Tie Plate?
A tie plate is a significant component of railroad infrastructure and is the required interface between the railroad tie and the rail. The flat, usually rectangular steel plate distributes the rail load to a larger section of the tie, so that the rail does not penetrate or distort the wood or concrete tie beneath.
Main function of a tie plate
The primary function of a rail tie plate is load distribution. As trains travel over the tracks, the enormous forces are concentrated at the rail’s narrow base. Without a tie plate, this concentrated force would cause the rail to settle into the tie, creating an uneven and possibly unsafe track surface. The tie plate spreads this load over a much larger surface area, rescuing the tie and promoting good rail alignment. They also set the correct rail gauge – the distance between the two rails. Tie plates provide a solid, flat surface for the rail to rest on and have design features that prevent rail movement sideways under train traffic.
The significance of tie plates in rail networks
Rail tie plates are among the most important elements of railroad safety and longevity. They ensure proper track geometry, which is integral to smooth train operation and passenger comfort. Without proper functioning of tie plates, rails may get misaligned, resulting in unsafe conditions that can cause derailments or undue wear on tracks and rolling stock.
Common Materials Used in Tie Plates
Cast iron tie plates
Cast iron tie plates were among the first to be used in the construction of railways. They possess high durability and can be cast with complex shapes and detailing. Cast iron possesses very good load distribution properties and maintains its shape very well under repeated loading cycles.
Steel tie plates
Steel tie plates are the modern norm since they have an improved strength-to-weight ratio and manufacturability. Steel plates can be rolled, pressed, or forged into various forms, allowing for closer engineering and better performance characteristics than cast iron products.
Comparison of durability and cost
Steel tie plates usually provide enhanced long-term value even though they may cost more initially. They are more resistant to cracking than cast iron, with better tensile strength and the ability to be produced to closer tolerances. Steel plates also tend to have longer lives in service, which decreases replacement frequency and maintenance costs over the years.
Primary Rail Tie Plate Types
Understanding the types of rail tie plates helps in selecting the right solution for specific railway uses. Each type is designed for certain operating conditions and track conditions.
One-hole tie plates
One-hole tie plates feature one bolt hole for attachment to the tie. These are typically used in lighter-duty uses or temporary track installations where installation ease is preferred over ultimate holding strength.
Two-hole tie plates
Two-hole tie plates possess a higher holding capacity compared to single-hole varieties. The additional bolt hole provides increased resistance against lateral forces and is used extensively in regular railway applications where there is the prospect of moderate traffic loads.
Four-hole tie plates
Four-hole tie plates are the heavy-duty option for high-traffic railroads. Four points of attachment provide optimal stability and load transfer, so these plates are ideal for main line trackage that experiences heavy freight or high-speed passenger traffic.
Double shoulder tie plates
Double shoulder tie plates feature raised edges on each side of the rail base. The shoulders provide lateral restraint, keeping the rail in position to resist sideways movement under train loading. This design is particularly important in curved sections of track where there are excessive lateral forces.
Single shoulder tie plates
Single shoulder tie plates have a raised edge on one side only, typically used in special cases or where no space is available for double shoulder designs because of clearance restrictions. They provide some lateral restraint with the ability to meet some track geometry requirements.

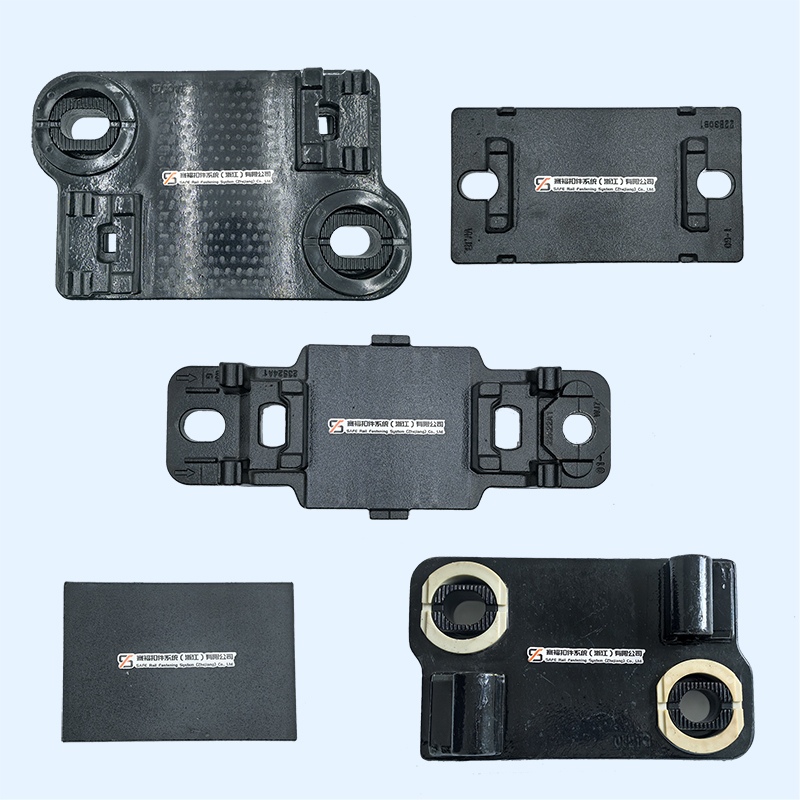

SAFE’s Role in Supplying Rail Tie Plates
SAFE Rail Fastening System (Zhejiang) Co., Ltd. is one of the largest manufacturers of railway fastening products, including whole rail tie plate systems. The wide range of their products indicates their commitment to serving different railway infrastructure needs.

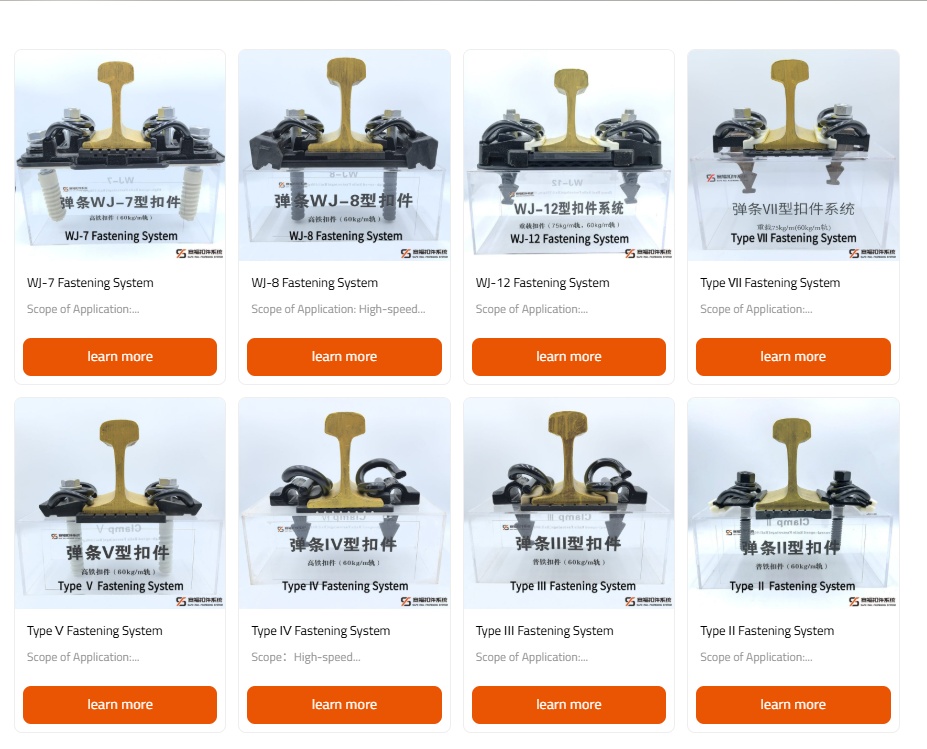

Overview of SAFE products
SAFE offers a record range of rail fastening systems like NABLA C1 Fastening System, E2091TAV Fastening System, E54AV Fastening System, S30HH Fastening System, E2007 Fastening System, S21 Fastening System, W300 Fastening System, W14HH Fastening System, W14 Fastening System, and various Type systems (Type V, Type IV, Type VI, Type VII Fastening Systems). These systems have high-performance tie plate designs for specific railway applications. Our company also provides whole metal parts like Rail Clip/Tension Clamp/k-type Clip/Nabla Blade, Bolt, Spike, Nut, Washer, Rail Gauge Baffle, and Fish Plate, to enable total fastening solutions for rail projects.
Quality and safety standards by SAFE
SAFE has rigorous quality control procedures for all its rail tie plate products. They employ advanced metallurgy and precision engineering in their processes so that each tie plate is designed to match world railway specifications. The company’s emphasis on safety is carried through to their product development, right from the design phase through the ultimate testing and delivery. Special switch and crossing fastening systems and check rails are another area of SAFE’s expertise, demonstrating their capability to handle complex railway infrastructure requirements beyond standard tie plates.
Choosing the Right Type of Tie Plate
Considerations: rail size, load, and track type
The selection of appropriate tie plates is a consideration of several factors. Rail size directly influences tie plate sizes and patterns of mounting. Heavy freight service requires heavier four-hole designs, but lighter passenger services can be adequate with two-hole plates. Track curvature, grade, and expected traffic density all influence the optimum selection of tie plates.
Matching tie plates to rail specifications
Proper choice of tie plates guarantees compatibility with the specific rail profile and weight. The plate must provide an adequate bearing surface for the rail base while maintaining the proper gauge width. Environmental conditions such as temperature changes, exposure to weather, and ground conditions are also contributing factors in material selection and design specification.
Maintenance Tips for Rail Tie Plates
Signs of wear to look for
Periodic inspection identifies tie plate problems before they compromise track safety. Look for cracking, especially in the bolt hole area, excessive wear of the rail-bearing surface, and signs of corrosion or metal fatigue. Loose attachment hardware indicates underlying problems requiring early attention.
When to replace a tie plate
Replace tie plates when bolts or other components lose their structural integrity through cracking, severe wear, or deformation. When bolt holes undergo elongation or the rail-bearing surface becomes heavily worn in patterns, replacement prevents potential track geometry problems and safety hazards.
FAQ
Q: What is a rail tie plate and what does it do?
A: A rail tie plate sits between the rail and the tie, distributing train loads to prevent the rail from sinking or damaging the tie. It also maintains track gauge and reduces lateral rail movement.
Q: What materials are used for tie plates and which is more durable?
A: Tie plates are usually made of cast iron or steel. Steel is stronger, more resistant to cracking, and has a longer service life than cast iron.
Q: In what ways are tie plates for wood ties and concrete ties different?
A: Concrete tie plates often have a range of mounting styles and may have special anchoring systems adaptable to concrete installation.
Q: How do I determine what size tie plate to utilize on my rail?
A: Tie plate selection is a function of rail weight, profile, and loads expected. Consult with manufacturers like SAFE, we can provide application-specific recommendations based on your railway requirements.
Q: Do you carry tie plates for high-speed rail applications?
A: Yes, high-speed railroads need specially adapted tie plates and fastening systems that can withstand the unique forces and vibrations of high-speed operation.
