In the complex world of U.S. train tracks, keeping things safe and smooth is very important. Among many parts, insulated fish plates shine as key helpers. These special connectors play a big role in keeping train signals working right. They stop unwanted electrical issues and help trains run safely and well. This blog looks at why insulated fish plates are so important, how they work, and their effect on today’s U.S. train systems.
What Are Insulated Fish Plates?
Understanding the Basics

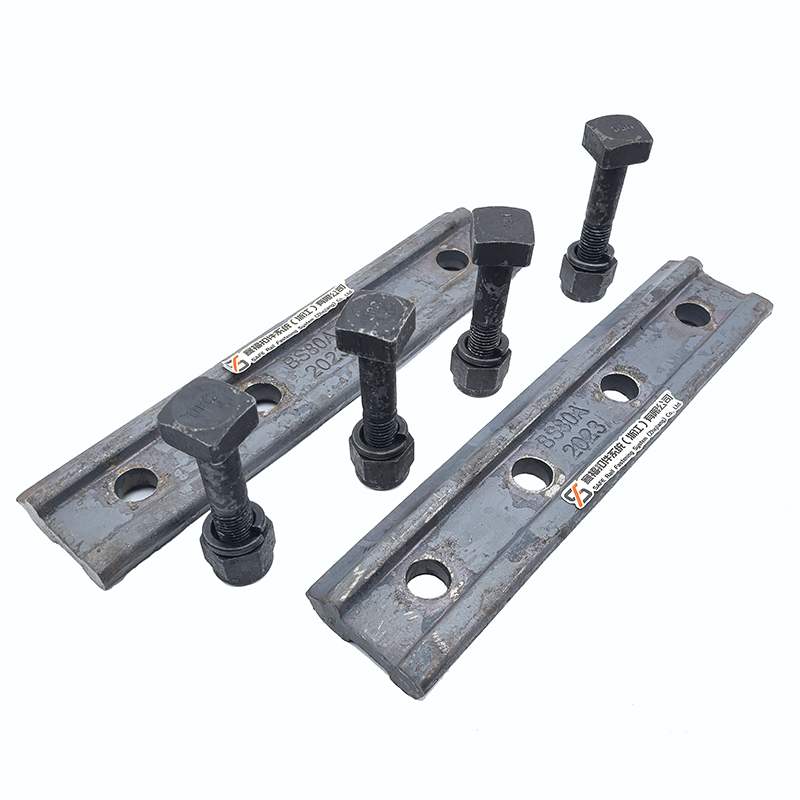

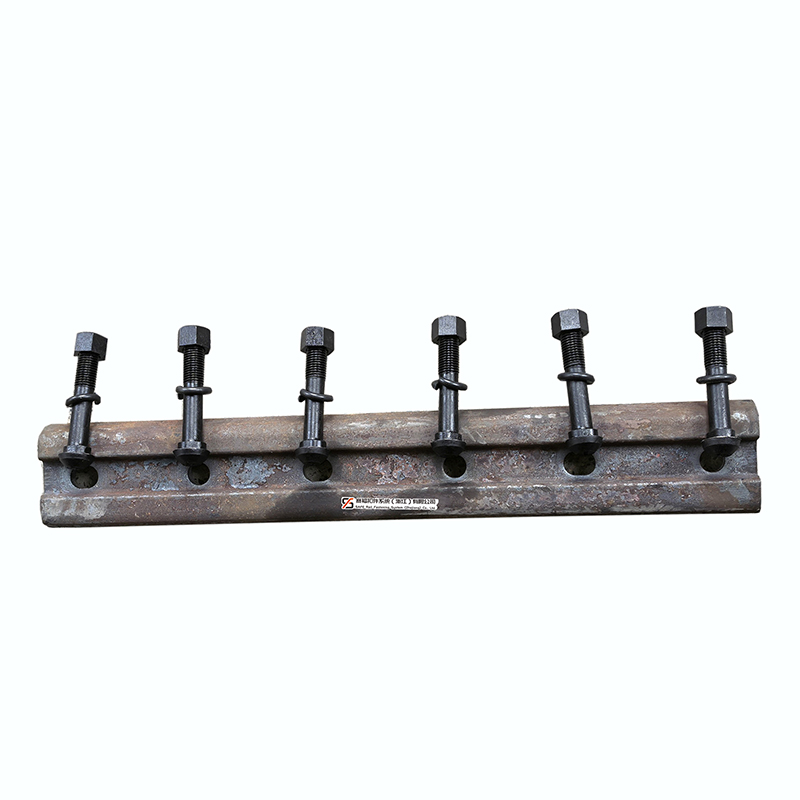

Fish plates, also called rail joiners, are metal pieces that link two rail ends. They keep rails steady and lined up. Regular fish plates are simple, but insulated fish plates have an extra job. They block electric currents from moving between rail ends. This blocking is vital for train signal systems, where stray electricity could cause problems.
How They Differ from Standard Fish Plates
Regular fish plates only hold rails together. However, insulated fish plates use materials that don’t carry electricity, like strong plastics or special coatings. These materials stop electric flow. This makes them necessary for keeping signals clear in modern train tracks.
- Regular Fish Plates: Let electricity pass; good for tracks without signals.
- Insulated Fish Plates: Stop electricity; essential for tracks with signals.
The Role of Insulated Fish Plates in Railway Signaling
Preventing Electrical Interference
Train signal systems use track circuits to spot trains and manage signals. These circuits send small electric currents through the rails. When a train’s wheels pass, the current stops. Insulated fish plates keep these currents in the right track sections. They prevent mix-ups that could cause wrong signals or system breakdowns.
Without insulated fish plates, electricity might flow to nearby track parts. This could lead to:
- Wrong train detection.
- Signal errors.
- Risks of crashes or derailments.
Supporting Modern Signaling Technologies
U.S. train networks now use advanced signal systems, like Positive Train Control (PTC). These systems need exact electrical separation to work well. Insulated fish plates ensure these systems stay dependable. They also help meet strict safety rules set by the government.
Why Insulated Fish Plates Are Critical for U.S. Railways
Enhancing Safety
Safety is the heart of train operations. Insulated fish plates make trains safer by ensuring correct train spotting and signal reliability. For instance, in busy areas like the Northeast Corridor, many trains run at once. A signal mistake could be disastrous. Insulated fish plates reduce these dangers by keeping electrical boundaries clear.
Improving Operational Efficiency
Dependable signals cut down delays and improve train schedules. Insulated fish plates stop electrical mix-ups. This helps trains run smoothly, especially in big rail hubs like Chicago or Los Angeles. Smoother operations save money for train companies and improve service for riders.
Meeting rephrased: Meeting Government Rules
The Federal Railroad Administration (FRA) sets tough rules for train signal systems. Insulated fish plates are key to following these rules, especially for track circuits and PTC standards. Using top-quality insulated fish plates helps train operators avoid fines and keep their certifications.
Technical Specifications of Insulated Fish Plates
Materials and Design
Insulated fish plates are built to handle tough train track conditions. These include extreme heat or cold, heavy weights, and constant shaking. Common materials include:
- Steel Core: Gives strong support.
- Non-Conductive Layers: Plastics or ceramics block electricity.
- Rust-Proof Coatings: Protect against wear and weather.
Standards and Testing
To ensure they work well, insulated fish plates must meet industry guidelines, like those from the American Railway Engineering and Maintenance-of-Way Association (AREMA). Strict tests include:
| Test Type | Purpose |
| Electrical Resistance | Checks if insulation works well |
| Load-Bearing Capacity | Ensures strength under pressure = Ensures strength under pressure |
| Environmental Stress | Tests durability in harsh conditions |
These tests make sure insulated fish plates work reliably in real situations.
SAFE Rail Fastening System: A Trusted Manufacturer
SAFE Rail Fastening System (Zhejiang) Co., Ltd. Is a top maker of rail parts, including insulated fish plates. With over 50 million RMB invested, SAFE uses advanced tools and strict quality checks. Their insulated fish plates are strong and precise, making them a great choice for U.S. train projects. Learn more about their focus on quality at SAFE.
FAQs About Insulated Fish Plates
Q.What is the main job of insulated fish plates?
- Insulated fish platesstop electric currents from moving between rail sections. This ensures track circuits work correctly in train signal systems.
Q.How do insulated fish plates make trains safer?
- They keep electrical signals separate. This ensures accurate train detection and reliable signals. It lowers the chance of crashes or derailments.
Q.Are insulated fish plates needed for all train tracks?
- No, insulated fish platesare mainly used in tracks with signal systems. These include tracks with track circuits or advanced systems like PTC.
Q.How long do insulated fish plates usually last?
- With good care, insulated fish platescan last for many years. Their lifespan depends on weather and train traffic.
Call to Action: Boost Your Train Operations
Insulated fish plates are more than just parts. They are the foundation of safe and smooth train signal systems. Are you a train operator, engineer, or buyer? Investing in high-quality insulated fish plates is a smart move. It makes trains safer and more reliable. Check out the latest rail fastening solutions. Make sure your tracks are ready for modern train travel. Contact a trusted supplier today. Learn how insulated fish plates can improve your operations!
