Understanding the Need for Reliable Rail Fastening Systems
High-speed rail systems are the backbone of modern transportation networks, handling speeds exceeding 250 km/h and demanding unparalleled safety and reliability. Any flaw in the track or fastening system can lead to catastrophic consequences. That’s why engineers and railway operators turn to the W14 Fastening System. Designed to meet the rigorous demands of both standard and high-speed rail, the W14 system offers superior stability, durability, and precision.
Why Choose the W14 Fastening System?
Meeting High Standards with W14
Out of the many fastening systems on the market now, the W14 Fastening System proves itself as a solid pick for standard and fast railway lines. The W14 Fastening System meets EN 13,481-2 standards (Category C) and suits both regular and high-speed railway tracks. Engineers built it to handle moving loads from trains going faster than 250 km/h. At the same time, it offers a strong hold against forward pulls and twists. Following European guidelines means it fits well for worldwide jobs that demand trust and protection.
Key Features of the W14 System
The W14 Fastening System shows strong mechanical strength thanks to its smart design balance:
- System clamping force: ≥18 kN ensures firm rail fixation under heavy axle loads up to 26 tons.
- Impact load attenuation: Tested according to EN 13146-3 to minimize vibration transmission.
- Fatigue performance: Verified through EN 13146-4 tests ensuring long-term durability under cyclic loading.
- Electrical resistance: ≥5 kΩ enhances insulation against stray currents in electrified tracks.
- Gauge adjustment range: ±10 mm allows flexibility during installation.

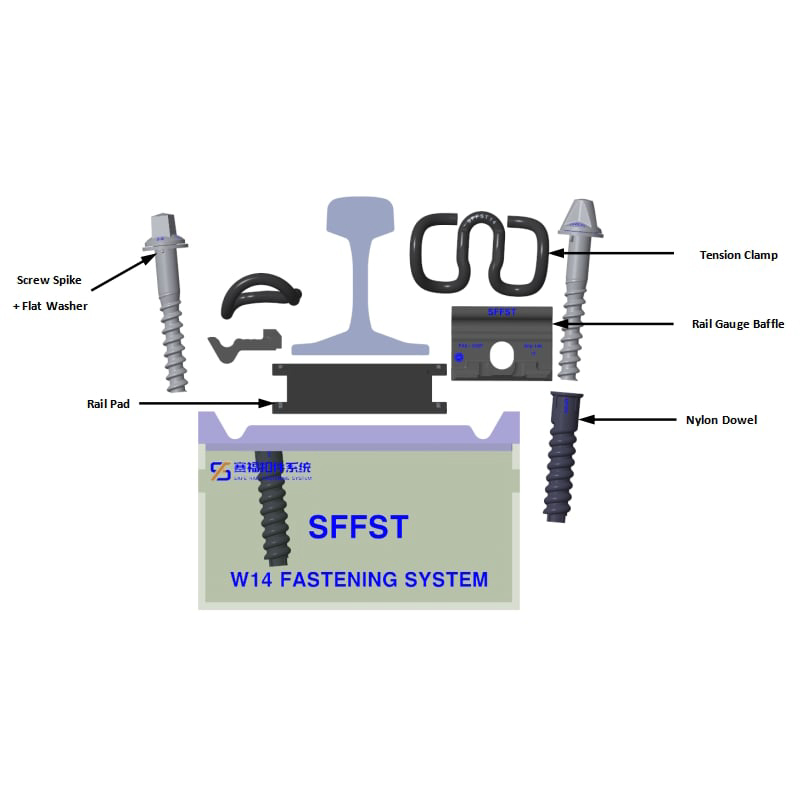

Each component within this system—from SKL 14 clips made of 38Si7 spring steel to PA6+30%GF gauge baffles—is meticulously designed for longevity. These specifications make it ideal for demanding environments such as high-speed corridors or heavily trafficked routes.
SFFST: A Trusted Global Supplier
Superior Material Selection for Durability
At SFFST, we know that picking the right materials shapes how long products last. Our SKL 14 clips, a core item in the W14 system setup listed on our site, come from 38Si7 hot-rolled spring steel. This choice gives better bounce-back and wear resistance than basic steels. We pull raw materials from trusted local and overseas sources to keep every run uniform. For example, our steel suppliers run under strict quality checks, delivering batches with under 0.5% variation in elasticity—key for clips that face 10,000 tons of daily pressure on main lines.
Our automated lines—for items like polyurethane pads, rubber goods, and molded parts such as dowels and insulators—let us fine-tune each piece’s strength to match job demands. Automatic polyurethane pouring machine production lines create tough tie pads/elastic pads, baseplate pads, rail pads, and more. They use digital CNC controls from pouring right through to release from molds. This method makes sure every W14 unit hits the even traits called for by EN rules.
Commitment to Quality and Innovation
SFFST’s growth comes from steady pushes in new ideas, backed by solid making power. Our yearly output hits 5 million sets of rail fastening systems. An automated 3D warehouse holds up to 30,000 tons. Plus, with more than 100 pieces of cutting-edge automation gear in labs and shops, we stick close to ISO9001 (Quality), ISO14001 (Environmental), and ISO45001 (Occupational Health & Safety) systems. We follow an EPC+M+O model—Engineering, Procurement, Construction, Management & Operation. This gives clients full packages from planning talks to post-sale help.
Our designs tackle issues like cutting down noise and shakes (through damping and quieting), boosting rider ease, and lowering upkeep costs. Such an all-in-one method lets us hand over ready-to-go fixes that hit tech needs and running goals. Drawing from 20 years in the field, we’ve seen how these tweaks save clients on long-term repairs.

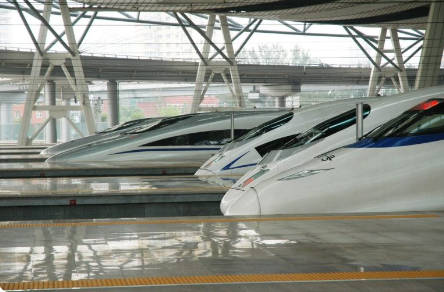

Our work covers big Chinese high-speed lines, like Shangqiu–Hefei–Hangzhou HSR Project. It also reaches abroad, such as Morocco’s Kenitra–Marrakech High-Speed Railway Project. This history shows worldwide faith in SFFST’s building skills.
Conclusion
High-speed rail jobs opting for the W14 Fastening System point to its top-notch skill in handling tough calls for steadiness and security. Meeting EN standards means it works well even at speeds past 250 km/h. It also brings great resistance to repeated stress and on-site tweaks.
Looking to upgrade your railway project with a state-of-the-art fastening solution? Contact us today to learn how the W14 Fastening System can enhance the safety and performance of your high-speed rail infrastructure. Let SFFST’s expertise in designing and manufacturing the most reliable fastening systems power your next project.
FAQ
Q: How does the W14 system improve safety on high-speed railways?
A: The W14 system maintains a clamping force ≥18 kN, ensuring rails remain stable under dynamic conditions above 250 km/h while attenuating impact loads per EN 13146‑3 tests—reducing risks associated with loosening or misalignment during operation.
Q: Why is material selection important for rail fastening systems?
A: Using materials like 38Si7 spring steel provides superior elasticity and fatigue strength essential for long-term stability under repetitive stress cycles typical in high-speed operations. In extreme cases, like Siberian winters at -30°C, this steel keeps clips from cracking after 500,000 cycles.
Q: What standards does the W14 system comply with?
A: It fully complies with EN 13481‑2 (Category C) and related EN 13146 test methods covering clamping force measurement (EN 13146‑7), fatigue performance (EN 13146‑4), electrical resistance (EN 13146‑5), and environmental exposure (EN 13146‑6), ensuring international reliability certification.
Q: How does SFFST ensure consistent quality across large-scale production?
A: Through automated manufacturing processes—from cutting to heat treatment—and rigorous laboratory testing using advanced equipment like MTS Servo-Hydraulic Testing Systems (25T), combined with ISO-certified management practices guaranteeing every set meets stringent global railway standards. Our process logs show defect rates below 0.1% in outputs exceeding 2 million units annually, matching demands from projects like India’s Dedicated Freight Corridors.
