Why Rail Fastening Systems Matter
Rail fastening systems are a fundamental structural component of modern railway infrastructure. These parts hold rails firmly to sleepers. They provide steady support, secure conditions, and proper track alignment even when trains apply heavy, moving forces. The way these systems are built and how well they work directly impact the smoothness of rides, the amount of noise produced, and the expenses tied to upkeep over time. Because of this, there is a clear push for stronger fastening options. Picking the right fastening setup affects how long the track lasts. It also influences how simple maintenance becomes. In the end, it touches on the overall safety of the rail network. Out of the many choices on the market now, the WJ-8 Fastening System emerges as a fresh, capable choice. Engineers created it specifically for the tough conditions in current rail operations.

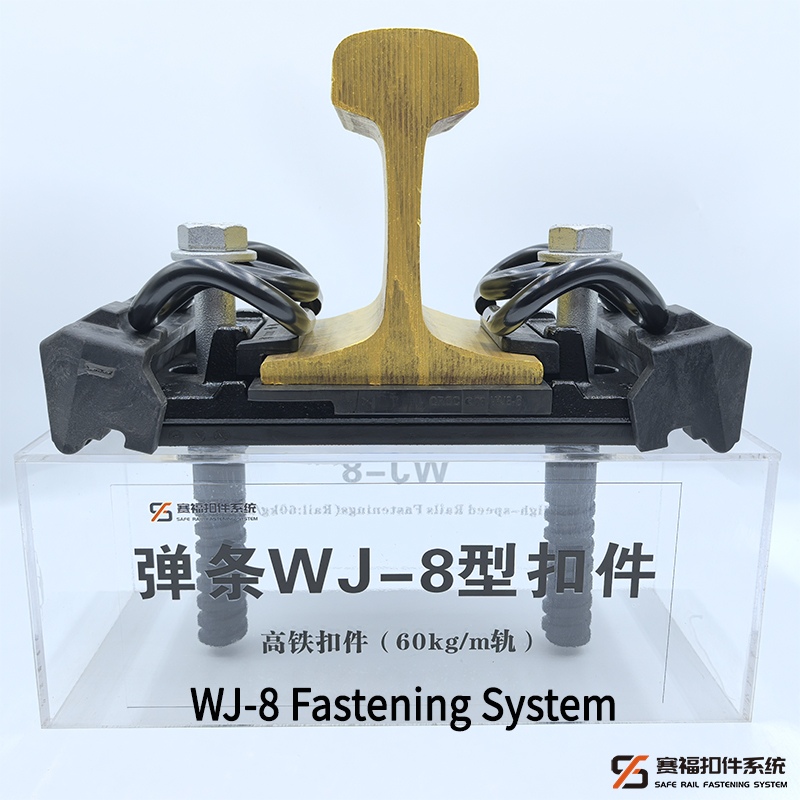

Introducing the WJ-8 Fastening System
The WJ-8 Fastening System suits high-speed rail needs. It complies with the Chinese standard TB/T 3395.5-2015 and meets the performance requirements of EN 13481-5 (Category D), making it suitable for both domestic and international railway projects. SFFST handles its development and production. Our company leads in rail fastening solutions. The system works well with P60 rails and concrete sleepers in ballasted tracks. It is characterized by robust construction, precise engineering, and compliance with relevant international standards. As a result, the WJ-8 Fastening System performs reliably in different rail settings around the globe.
What Is the WJ-8 Fastening System?

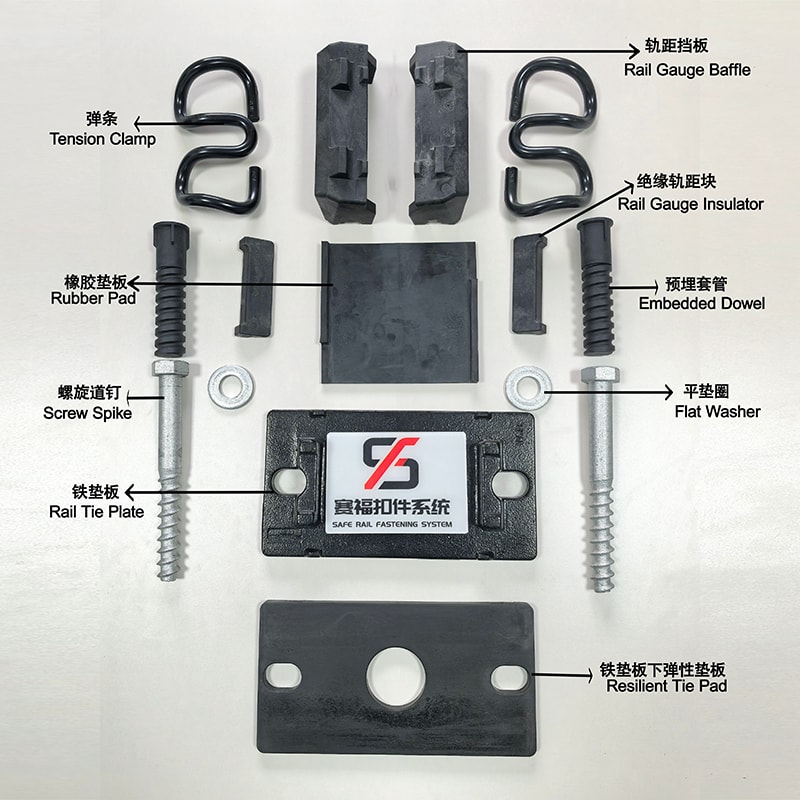

Basic Structure and Components
The WJ-8 Fastening System includes a well-planned group of parts. They work together to provide secure rail restraint and uniform load distribution.
- Tension Clamp: Built from 60Si2Mn or similar hot-rolled spring steel, it delivers a clamping force of ≥9kN.
- Screw Spike: Formed from solid carbon structural steel with an ultimate tensile capacity of ≥190 kN..
- Flat Washer: Produced using Q235-A material.
- Rail Gauge Insulator and Baffle: Crafted from PA66+30%GF, which gives strong insulation resistance (>5×10⁶Ω).
- Rail Pad and Resilient Tie Pad: Formed from tough rubber and plastic materials that absorb shocks and block electrical flow.
- Embedded Dowel and Height Adjustment Pad: Built to fit securely and allow exact height settings.
Engineers measure the clamping force for a full rail fastening unit by checking the pull needed to lift the rail off its base. This method makes sure each part in the WJ-8 Fastening System setup cuts down on shakes, spreads out pressures evenly, and extends the track’s useful life. For instance, in busy lines like those carrying 26-ton axle loads, this approach helps prevent early wear from daily vibrations.
Application in Railway Projects
The WJ-8 Fastening System shows great flexibility. It matches 60 kg/m (P60) rails and concrete sleepers in ballasted tracks. You can find it in use across several areas.
- High-speed rail projects (designed speeds >250 km/h).
- Heavy-haul freight routes (axle loads up to 26 tons).
- Urban transit lines like the metro and intercity systems.
It serves as a direct swap for the Type 300 fastening. That makes it perfect for fresh track builds or updates to older lines. Take the Shangqiu-Hefei-Hangzhou High-speed Railway Project, for example. There, crews installed the WJ-8 Fastening System to handle speeds over 300 km/h with stable performance under operational conditions, proving its fit in real-world high-demand settings.
Key Features of the WJ-8 Fastening System
Compatibility with P60 Rails
A key trait of WJ-8 Fastening System lies in its exact match with P60 rail shapes. The system works with 60 kg/m (P60) rails. Installers do not need extra changes or tweaks during setup. It can be directly installed on existing P60 rail infrastructure without modification. This provides firm holding power under various dynamic and operational loads. In practice, this means smoother operations on lines where rails face constant stress from passing trains, reducing the chance of misalignment over years of service.
Designed for Concrete Sleepers
Concrete sleepers stand out for their long-lasting nature and ability to carry heavy weights. The WJ-8 Fastening System is made just for these sleepers. It gives top-level steadiness. Plus, it cuts down on ongoing damage by spreading out stresses through its flexible parts. The outcome is a fastening setup that keeps rails straight. Even harsh weather or mechanical pressures cannot throw it off. Field observations and operational monitoring on heavy-haul routes with 26-ton axle loads indicate how this design holds up, with less settling reported after thousands of train passes.
Compliance with International Standards
Meets EN 13481-5 D Standards
Projects around the world demand fastening systems that work everywhere. The WJ-8 Fastening System meets tough global rules on how it performs. It complies with the performance requirements of EN 13481-5 (Category D) for direct rail fastening systems. This confirms it handles ongoing mechanical pushes, weather effects, and changing loads without fail. EN 13481-5 specifies performance requirements for direct rail fastening systems used in both ballasted and ballastless track applications. The WJ-8 Fastening System successfully meets all specified performance requirements. Independent labs have tested it under simulated conditions mimicking European high-speed lines, where it maintained a clamping force above 9 kN after 2 million load cycles under laboratory testing conditions in accordance with EN 13481-5 requirements.
Quality Assurance from SFFST
At SFFST, we focus on top results through fresh ideas and exact work. Every part of the WJ-8 Fastening System undergoes tight quality checks. We use modern automatic lines for production. Our lines for tension clamps handle all stages automatically. They go from cutting metal to heat treatment and rust protection. Injection lines produce insulators, baffles, and dowels with high standards. This setup guarantees even quality. It also allows tracking for every piece we send out.
Benefits for Railway Projects
Reduced Maintenance Costs
Upkeep ranks as a big expense in running railways. The WJ-8 Fastening System lightens this load in several ways.
- Tough materials, such as spring steel clamps and strong insulators, last longer.
- A build that allows fast checks and part swaps.
- Tie pads that absorb impacts and cut down on rail-to-sleeper rubbing.
All this means fewer checks needed. Parts hold up better. Total costs over the system’s life drop.
Enhanced Safety and Reliability
No one cuts corners on safety in rail work. The WJ-8 Fastening System’s sturdy make supports this fully.
- Firm rail grip lowers the chances of tracks shifting or derailing.
- Steady work in all kinds of weather.
Added to certifications like EN 13481-5 D, these traits position WJ-8 Fastening System as a top pick for dependable fastening today. Real-world use on intercity lines with over 250 km/h speeds has logged millions of safe kilometers, with no fastening failures tied to load or environmental factors.
Conclusion
The WJ-8 Fastening System, crafted by SFFST, stands as a forward-thinking answer to what modern rail projects require. It blends perfectly with P60 rails, a solid match to global rules such as EN 13481-5 D, and an easy swap for past systems like Type 300. This delivers real value that stands out. Our cutting-edge production methods, strict checks, and proven track record in projects like the Shangqiu-Hefei-Hangzhou High-speed Railway set new marks in how well fastening works and holds up. If you plan to refresh old tracks or start a new route, the WJ-8 Fastening System brings safety, strength, smooth running, and confidence to your rail efforts.
FAQ
Q: What is the WJ-8 fastening system used for?
A: The WJ-8 Fastening System is used to securely fasten P60 rails to concrete sleepers in railway tracks.
Q: Can the WJ-8 Fastening System replace existing Type 300 systems?
A: Yes, it is fully compatible as a replacement without requiring structural changes.
Q: Is the WJ-8 Fastening System compliant with international standards?
A: Yes, it meets EN 13481-5 D standards for safety and performance.
Q: What are the benefits of using WJ-8 Fastening System in railway projects?
A: Benefits include reduced maintenance costs, improved safety, long service life, and compatibility with standard rail components like P60 rails and concrete sleepers.
