Railway infrastructure requires accuracy, strength, and security, particularly for high-speed and ballastless track systems. The WJ-8 Rail Fastening System excels as a top-tier solution, crafted to fulfill the stringent demands of contemporary rail networks. This blog examines why the WJ-8 is the preferred option for ballastless tracks, exploring its technical benefits, uses, and advantages for rail operators and engineers. Whether you’re a railway expert or a project coordinator, grasping the WJ-8’s capabilities can help you improve your rail initiatives.
What Makes Ballastless Tracks Unique?
Ballastless tracks differ from conventional ballasted tracks. They employ concrete slabs or sleepers to create a solid base for rails. These tracks are popular in high-speed railways, city metro systems, and tunnels because of their:
- Increased Stability: Concrete slabs lessen track distortion under heavy weights.
- Reduced Upkeep: Minimal track settling removes the need for regular ballast adjustment.
- Enhanced Ride Comfort: Smoother surfaces improve passenger ease and decrease wear on trains.
However, ballastless tracks need sophisticated fastening systems. These systems must manage dynamic forces, ensure gauge precision, and guarantee long-term dependability. The WJ-8 Rail Fastening System shines here, providing customized solutions for these challenging settings.
Key Features of the WJ-8 Rail Fastening System

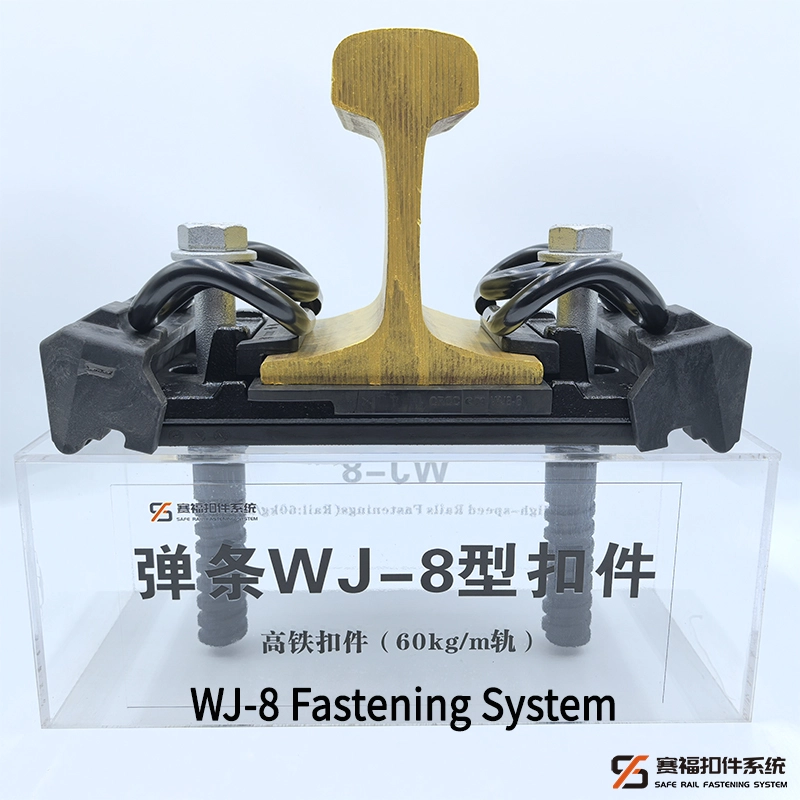

The WJ-8 Rail Fastening System is a ballastless track fastener. It is built to meet the technical standards of high-speed passenger lines, such as those in TB/T 3395.5-2015. Its sturdy design and advanced components make it perfect for non-shoulder ballastless tracks. Let’s explore its notable features.
Optimized Structural Design

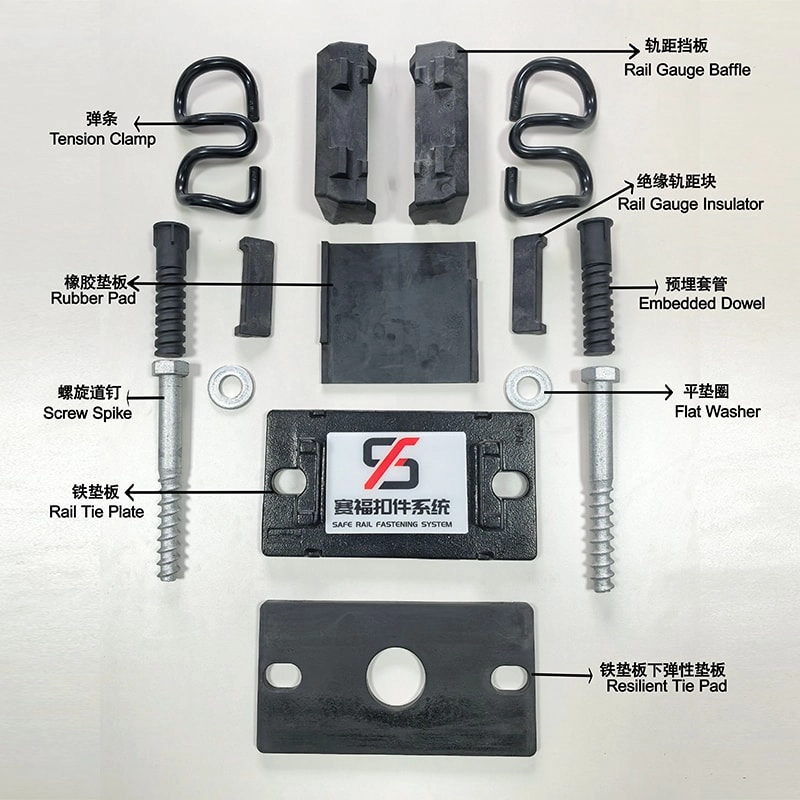

The WJ-8 is a flexible, non-separating fastener system. It includes an iron rail pad for stability under intense dynamic loads. Its main structural parts are:
- Screw Spikes and Flat Washers: These firmly anchor to concrete sleepers or slabs.
- Tension Clamps: They provide steady clamping force. This prevents rail shifting.
- Rail Gauge Insulatorsand Rail Gauge Baffles: These improve insulation. They also maintain track gauge.
- Rail Tie Platesand Rubber Pads: These use durable thermoplastic elastomers. They offer excellent elasticity and vibration reduction.
This design reduces lateral and longitudinal rail movement. It ensures track steadiness, even at speeds up to 350 km/h with axle loads of 170 kN. It can handle up to 187 kN with a 10% increase.
Enhanced Elasticity and Fatigue Resistance
The WJ-8’s tension clamps feature a wide stroke. They have strong fatigue resistance. This reduces pressure loss over time. The system’s damping cushion sits under the iron rail pad. It effectively absorbs vibrations. This lowers noise and extends track durability. Such features are vital for high-speed lines. Passenger comfort and infrastructure longevity are key priorities here.
Simplified Maintenance and Installation
The WJ-8 Rail Fastening System is designed for user-friendliness. Its non-separating structure enables easy assembly. You can adjust rail height with fine-tuning pads. This ensures accurate alignment. Consequently, installation time decreases. Maintenance frequency also drops. These factors save costs for rail operators.
| Feature | Benefit |
| Tension Clamps | Reliable clamping force, strong fatigue resistance |
| Thermoplastic Elastomer Pad | Excellent vibration reduction, prolonged service life |
| Rail Gauge Baffles | Accurate track gauge maintenance, better insulation |
| Height-Adjustable Pads | Flexible rail alignment, reduced installation difficulty |
Why Choose the WJ-8 Rail Fastening System for Ballastless Tracks?
The WJ-8 Rail Fastening System is tailored to tackle the challenges of ballastless tracks. It is a top pick for high-speed rail projects. Here’s why it excels.
Superior Performance at High Speeds
High-speed railways, like China’s Wuhan-Guangzhou line, need fastening systems that endure extreme dynamic forces. The WJ-8’s strong clamping force and low-stiffness cushion ensure stability at speeds up to 350 km/h. This reduces rail displacement. It also boosts safety.
Compatibility with Non-Shoulder Tracks
The WJ-8 is optimized for shoulderless ballastless tracks. These are common in bridges, tunnels, and subgrades. Unlike shoulder-based fasteners, its concrete retaining shoulder and rail gauge baffles efficiently transfer lateral loads. This maintains structural strength under heavy train traffic.
Cost-Effective Long-Term Solution
The WJ-8’s robust components reduce the need for frequent replacements. Its high-fatigue-strength clips and long-lasting elastomer pads are key. They lower maintenance costs and downtime. This makes the WJ-8 a budget-friendly option for rail operators seeking high returns.
Proven Track Record
The WJ-8 has been successfully used in many high-profile projects. These include slab and sleeper-embedded ballastless tracks. Its reliability is proven through strict testing. It complies with international standards. This builds trust among railway engineers.
Applications of the WJ-8 Rail Fastening System
The WJ-8’s versatility suits various ballastless track applications. These include:
- High-Speed Railways: It ensures stability for passenger trains at 350 km/h.
- Urban Metro Systems: It reduces noise and vibration. This creates smoother city transit.
- Bridges and Tunnels: It adapts to compact, shoulderless track designs.
- Slab and Sleeper-Embedded Tracks: It offers flexibility for diverse infrastructure.
For more details on real-world projects, check out SAFE’s conventional railway projects.
Introducing SAFE: A Leader in Rail Fastening Solutions
Let’s introduce SAFE Rail Fastening System (Zhejiang) Co., Ltd., the creator of the WJ-8. Based in Zhejiang Province, China, SAFE operates a modern facility. It spans over 50,000 square meters. The investment exceeds 50 million RMB. SAFE produces 5 million sets of rail fastening systems annually. It is a trusted name in railway engineering.
SAFE specializes in high-quality rail fastening systems and components. These include clips, pads, tie plates, and bolts. They serve conventional, high-speed, heavy-haul, and metro applications. SAFE’s commitment to innovation is clear. The SAFE Shanghai Research Center collaborates with industry and academia. It advances rail transit solutions. All products, including the WJ-8 Fastening System, undergo thorough testing. They meet global standards like EN 13146 and TB. This ensures reliability and safety. Visit SAFE’s homepage to explore their full range of solutions.
FAQs About the WJ-8 Rail Fastening System
Q1. What is the WJ-8 Rail Fastening System designed for?
A1. The WJ-8 Rail Fastening System is made for ballastless tracks. It is ideal for high-speed railways, urban metros, bridges, and tunnels. It ensures rail stability. It maintains precise gauge. It also reduces vibrations under dynamic loads.
Q2. How does the WJ-8 improve track longevity?
A2. The system’s tension clamps have high fatigue resistance. The thermoplastic elastomer pads absorb vibrations well. These features reduce wear on rails and sleepers. As a result, track lifespan increases.
Q3. Is the WJ-8 Rail Fastening System suitable for extreme weather conditions?
A3. Yes, the WJ-8’s sturdy materials and flexible design are adaptable. They handle thermal expansion and contraction. This ensures consistent performance in varying temperatures and climates.
Q4. Can the WJ-8 be used for both passenger and freight lines?
A4. The WJ-8 is mainly for passenger lines. It supports speeds up to 350 km/h with axle loads of 170 kN. However, it can handle mixed traffic. It supports axle loads up to 187 kN. This makes it versatile for some freight applications.
Q5. How does the WJ-8 ensure safety on high-speed tracks?
A5. The system has a strong clamping force. It offers precise gauge control. Its vibration-damping components minimize rail displacement. They also reduce track deformation. These features enhance safety for high-speed operations.
Take Your Rail Project to the Next Level
The WJ-8 Rail Fastening System is more than a fastener. It is a foundation of modern railway infrastructure. Its innovative design delivers proven performance. It also offers cost-effective maintenance. This makes it ideal for ballastless tracks. Whether you’re upgrading a line or building a new high-speed network, the WJ-8 provides reliability and efficiency.
Ready to improve your rail project with advanced fastening solutions? Explore the full range of rail fastening systems at SAFE. You can also contact us today to discuss your needs. Let’s build safer, smoother, and more sustainable railways together.
