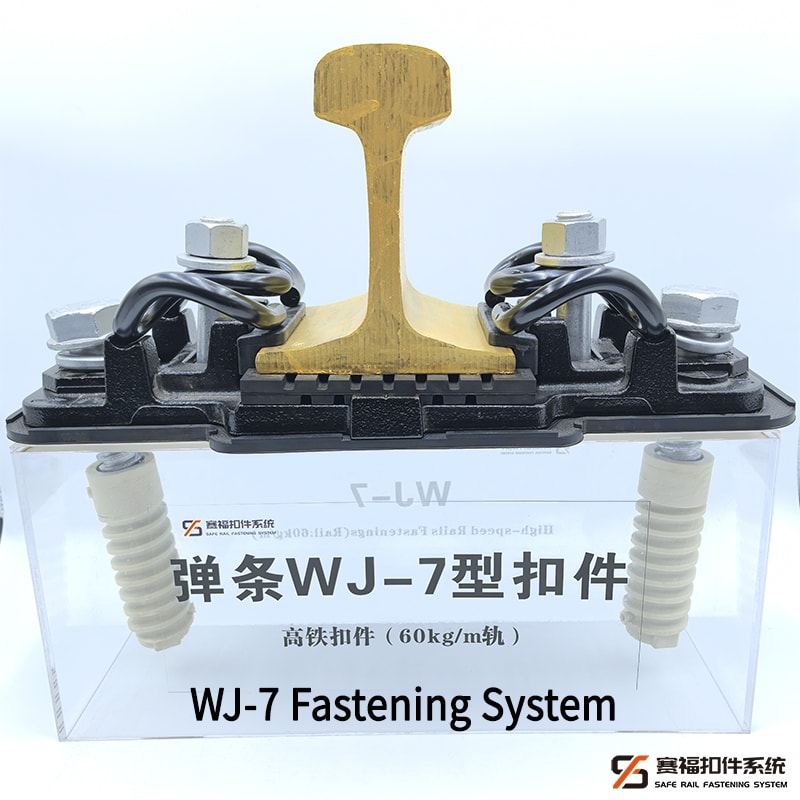

Among the numerous fastening systems presently available, the WJ-7 Fastening System can perhaps be identified by its strong build and high-quality performance in certain railway uses. Being one of the numerous products of SAFE’s huge product range, the WJ-7 Fastening System is designed to have the functions needed to satisfy present-day demands on railway structures, such as high-speed, urban, and freight rail tracks. SAFE provides a wide range of fastening systems, among which is the WJ-7 Fastening System, which is intended to be durable and compatible with new track structures.
Why the WJ-7 is Important in Railways
The WJ-7 Fastening System is important as it provides rail-to-sleeper contact that has direct effects on safety, ride quality, and maintenance. Its accuracy, clamping force under heavy load, corrosion resistance, and shock absorbance make it the ideal option for high-intensity rail use. The clamping force of an entire rail fastening set is defined by measuring the force required to push the rail off the surface on which it is resting.

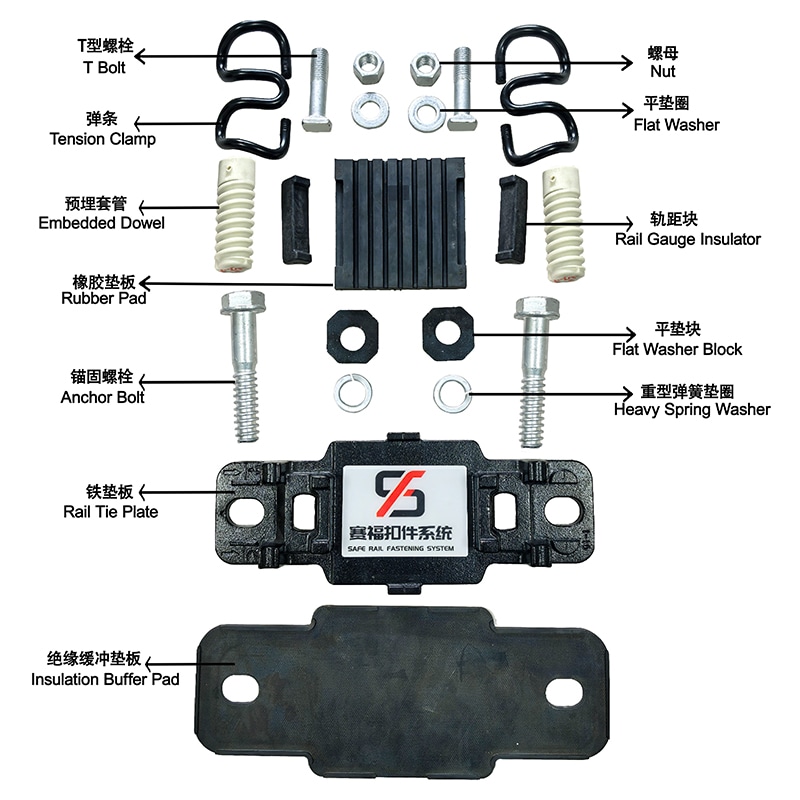

Major Features of the WJ-7 System
Rail Clips
The main component keeping rails in place is rail clips. In the WJ-7 system, custom-designed clips apply a controlled clamping force, keeping the rail in place but permitting minor movement for adjustment to thermal expansion. SAFE manufactures these clips on automated production lines to ensure quality consistency.
Insulators and Rail Pads
High-performance insulation and rail pads electrically decouple the rail and dampen vibration. Made to specification using automated polyurethane pouring technology, these also transfer loads evenly and shield the track bed against excessive wear.
Fastening Bolts and Sleeves
Bolts, nuts, and sleeves bear the system on sleepers. SAFE automation produces each fastener to exact quality tolerance and resists loosening through repeated vibration and severe loading.
How the WJ-7 System Works
- Load Distribution
The WJ-7 system equally transfers vertical and lateral loads of passing trains to the rail and sleeper. Optimal contact is attained with clips and elastic pads, which also preclude track deformation.
- Vibration and Noise Reduction
Lighter noise and vibration are beneficial for urban transit and high-speed rail. Vibration dampening is provided by WJ-7’s clips and pads, which improve passenger comfort and track life.
- Ensuring Track Stability
Big clamping force and corrosion-resistant materials provide long-term stability. All products are subjected to tests to give consistent performance in a wide range of environments and operating conditions.
Benefits of the WJ-7 System
Long-Term Performance and Longevity
Raw materials are specially selected for corrosion, fatigue, and mechanical stress resistance. The WJ-7 system satisfies European test standards, providing long-lasting and consistent operation with severe usage.
Easy Maintenance and Installation
Made with easy mounting in mind, the WJ-7 is quickly mounted and demounted using SAFE’s tooling. It keeps downtime away and minimizes maintenance labor expense.
Flexibility with New Track Designs
The system can accommodate various rail profiles as well as sleeper patterns, thus being ideal for new installation or retrofitting of tracks.
Applications in Railway Infrastructure
High-Speed Rail Systems
WJ-7 Fastening System has also been applied to numerous high-speed rail projects because it possesses great vibration-damping and stability. Solutions offered by SAFE were of significant importance in ensuring track performance and reliability in the Wuhan-Guangzhou High-Speed Railway.
Urban Transit Networks
Urban transit systems require low-maintenance, noise-reduced track solutions. They are provided by the WJ-7 with its noise-reducing pads and corrosion-resistant materials. SAFE designed advanced fastening systems for urban transit in the Chengdu Metro Line 17 Project.
Freight and Cargo Lines
Heavy-haul rail reinforcement through high clamping force and firm design is provided by the WJ-7. SAFE provided 130,000 sets of high-performance heavy-haul railway fastening systems in the Fenghong and Jingshen Railway project.
SAFE Specialty in Railway Solutions
Technical Driving Force Behind SAFE Products
Our manufacturing capability is the driving force behind our success. From automatic clip forming to polyurethane pad molding and baseplate casting, our production lines are made to be efficient and accurate. Everything was done using automated and mechanized systems. This allows us to provide consistent quality for all of our products.
Quality Assurance from Production to Deployment
All the parts of the WJ-7 Fastening System are subjected to rigorous quality testing. The test report must include at least the following details: name, designation, and description of fastening assembly, including individual components, tested. We adhere to international standards like EN 13146 and EN 13481 in order to ensure that our systems meet or exceed the regulatory and functional performance standards. These are complemented by the specifications in the series EN 13481 “Railway applications — Track — Performance requirements for fastening systems”.
Conclusion
WJ-7 Fastening System provides stability, durability, and maintainability, which are wonderful advantages for freight rail lines, urban rail lines, and high-speed rail lines. With SAFE’s technology and expertise in automated manufacturing to support it, WJ-7 provides safer, quieter, and more efficient train transportation globally.
FAQ
Q: What is unique about the WJ-7 Fastening System compared to other systems?
A: The WJ-7 provides an optimized balance of high clamping force, vibration damping, and easy maintainability, suitable for diversified rail applications.
Q: Can the WJ-7 be used for high-speed rail?
A: The WJ-7 Fastening System can support the requirements of high-speed rail, with effective use in projects such as the Wuhan-Guangzhou High-Speed Railway.
Q: How does SAFE guarantee product quality?
A: SAFE uses complete automatic production lines and strict testing procedures based on European standards to guarantee product uniformity and performance.
Q: How can I know more about SAFE railway fastening products?
A: You can visit our official website or contact us directly through WhatsApp or email for more information.
Q: Is WJ-7 compatible with other rail track systems?
A: Yes, it is compatible with a range of rail and sleeper profiles and hence compatible for new build as well as upgrade for improvement.
