Urgent Need for Railway Noise Control
Urbanization and Rise in Noise Pollution
As cities expand, there is a growing demand for capacity railway transportation with efficiency. With growth, however, comes a significant problem: increased railway noise and vibration pollution. These disturbances not only interfere with the comfort of people living adjacent to them but also compromise the integrity of building structures in the surroundings.
Impact of Vibration and Noise on Communities and Infrastructure
Railway-induced vibrations and noise pose the risk of damage to buildings over the long term, interfere with daily living, and decrease property values. The low-frequency ground-borne vibrations are particularly prone to tunnels and bridges. This is why it is important to employ good vibration and noise attenuation systems for sustainable urban development.
SAFE’s Role in Railway Component Manufacturing
SAFE Rail Fastening System (Zhejiang) Co., Ltd. in Zhejiang Province, China, sits on over 50,000㎡ square meters of land and boasts an investment of over 50 million RMB. The company produces over 5 million sets of rail fastening systems annually, supported by an automated 3D warehouse with a storage capacity for products worth 30,000 tons. With more than 100 units of imported automated manufacturing and test facilities, SAFE is at the forefront of precision-engineered railway solutions.
Engineering Solutions for Sustainable Rail Networks
SAFE provides turnkey EPC+M+O services—Engineering, Procurement, Construction, Maintenance & Operation—where all aspects of rail fastening systems are optimized for performance, long life, and environmental compatibility. Optimizing the system to provide noise emission, passenger comfort, and reducing the cost of maintenance operations is the very basis of their engineering philosophy.
Core Technologies Behind Quiet Rail Systems
Advanced Materials and Precision Manufacturing
SAFE employs high-quality raw materials sourced from reputable domestic enterprises. The company has set up professional production lines, including automatic tension clamp lines and polyurethane pouring machines, ensuring consistency and scalability in manufacturing.

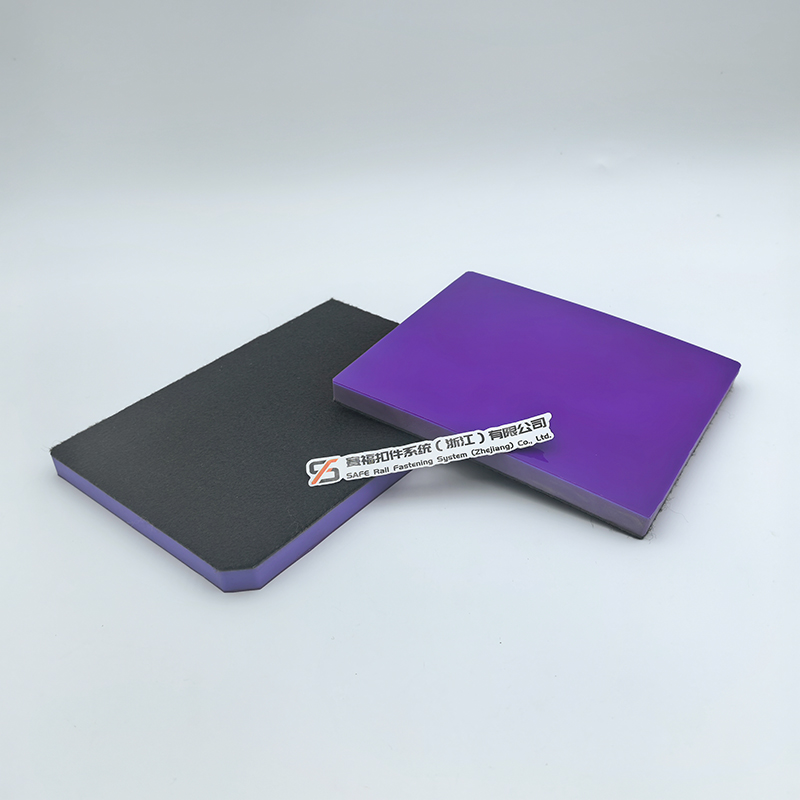

Under Sleeper Pad (USP)
SAFE’s Expertise in USP Production and National Standards Compliance
SAFE participated in the compilation of national standard GB/T 21527-2008 for resilient tie pad of rail fastening system and has implemented these standards rigorously across its USP product line.
Role as Damping Layer at Sleeper-Ballast Interface
USPs act as a critical damping layer between sleepers and ballast. They absorb vertical loads from trains while distributing stress evenly across the track bed.
Benefits: Reduced Ballast Wear, Extended Component Life
By minimizing dynamic stress transfer to the ballast layer, USPs significantly reduce maintenance frequency. Their customized formulations ensure compatibility with various track conditions for both high-speed and conventional rails.

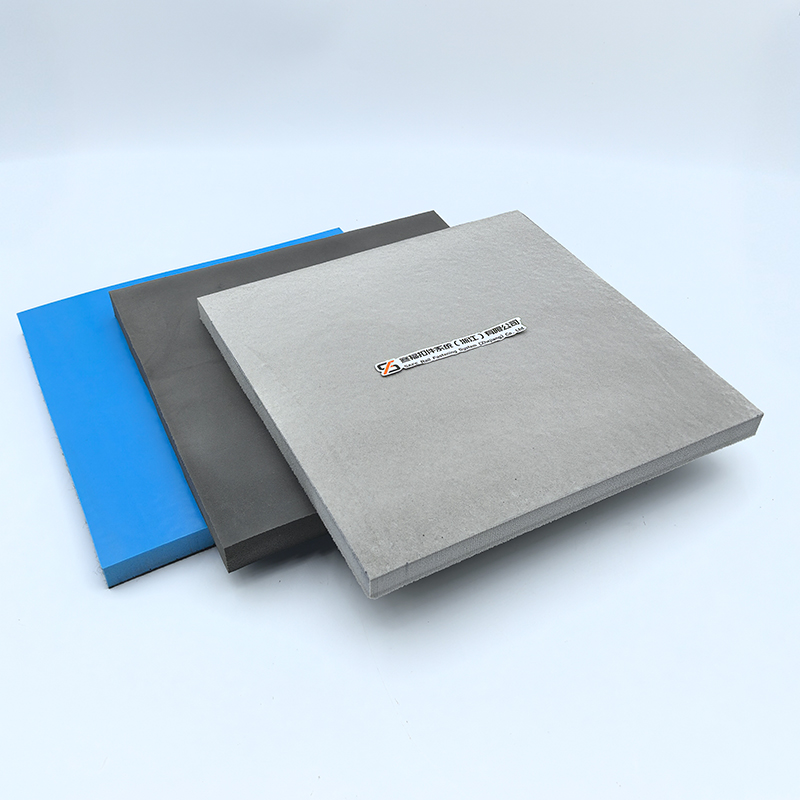

Floating Slab Mat (FSM)
Functions in Tunnel and Bridge Isolation
FSMs are designed for use beneath floating slabs in tunnels or elevated structures where vibration isolation is critical. They effectively decouple the track structure from its foundation.
SAFE’s Automated Polyurethane Casting Line and Lab Testing Capabilities
SAFE uses an automatic polyurethane pouring machine production line controlled by digital CNC, enabling customized FSM production with precise density control. Non-metal lab testing includes tensile performance, static stiffness, and fatigue performance, ensuring FSMs meet stringent operational demands.
Benefits: Groundborne Vibration and Noise Reduction
FSMs provide substantial attenuation of low-frequency vibrations that traditional damping methods cannot address effectively. This results in quieter environments around rail corridors.
Rubber Boot for Fastening System
Function: Isolating Track from Fastening Components
Rubber boots enclose metal fasteners like dowels or bolts within a resilient sleeve to isolate vibrations before they reach rigid components or substructures.
SAFE’s Rubber Boot Production Line and Quality Control Measures
SAFE operates an automatic rubber products production line equipped with advanced testing facilities. Each rubber boot undergoes rigorous quality checks, including hot air aging performance and insulation resistance tests.
Benefits: Structural Noise Reduction Through Fastening Systems
Rubber boots play a vital role in reducing structure-borne noise by preventing direct metal-to-metal contact within fastening assemblies—enhancing both ride comfort and infrastructure longevity.
SAFE Advantages: Quality, Capacity, Integration
Beyond Components – Ensuring System Reliability
Under high-quality management systems such as ISO9001/ISO14001/ISO45001, SAFE ensures every component meets international standards like EN 13146-4:2020 for repeated loading effects on fastening systems.
Scaled Precision Manufacturing Capabilities
With fully automated lines for tension clamps, rubber pads, and injection molding parts like insulators or gauge baffles—SAFE delivers consistent quality at scale.
Over 5 Million Sets Annual Output with Automated Warehousing
The automated warehouse stores up to 30,000 tons of products, supporting rapid dispatches globally without compromising inventory accuracy or product safety.
Strict Quality Control Processes
All raw materials undergo lab testing before entering production lines. Metal lab tests include rust prevention and load fatigue; non-metal tests focus on fatigue performance and dynamic stiffness—ensuring reliability under real-world conditions.
Integrated EPC+M+O Solutions by SAFE
From customized design consulting to on-site worker training during construction phases—SAFE offers end-to-end support tailored to client needs worldwide.
Designed for Performance and Sustainability
Delivering Quiet and Durable Infrastructure Solutions
Each component—from floating slab mats to under sleeper pads—is engineered not just for function but longevity under extreme loads or environmental conditions.
Synergy Between FSM, USP, and Rubber Boot Systems
Together, these three components form a comprehensive vibration & noise mitigation system that addresses multiple transmission paths—from direct contact points down to subgrade propagation layers.
Performance Focused on Emission Reduction and Cost Efficiency
By extending track life cycles through reduced wear-and-tear on ballast or fasteners, clients benefit from lower lifecycle costs alongside improved environmental outcomes due to fewer replacements or repairs needed over time.
Commitment to Environmentally Friendly Manufacturing Practices
Selection and design of environmentally friendly production processes ensure that SAFE remains responsible toward environmental protection while delivering world-class railway solutions.
FAQ
Q: What is an Under Sleeper Pad (USP) used for?
A: A USP acts as a damping layer between sleepers and ballast to absorb vibrations, reduce ballast degradation, extend track life span, and enhance ride comfort through customized material formulations.
Q: Can I get customized vibration control components based on my project’s requirements?
A: Yes. SAFE offers fully customized solutions, including USPs, FSMs, and rubber boots tailored by density grade or geometry depending on application needs such as metro lines or high-speed rails.
Q: How does SAFE ensure product quality across such large-scale output?
A: Through automated precision manufacturing lines combined with comprehensive metal/non-metal laboratory testing protocols based on ISO standards like EN 13146-4:2020, to guarantee consistent quality even at volumes exceeding five million sets annually.
