Product Description
Under sleeper pads are designed to enhance track stability, protect the underlying ballast layer, and provide effective isolation against vibrations. Their application extends across a wide range of railway infrastructure—including high‑speed lines, heavy‑haul routes, and existing standard‑gauge tracks—and they are equally well‑suited for both renewal projects and routine maintenance work.
These pads are pre‑bonded to the sleepers at the factory using an advanced adhesion system, which removes the need for any additional handling or fitting at the installation site. As a result, the mounting process is exceptionally fast, independent of weather conditions, and causes only minimal interruption to regular train operations.

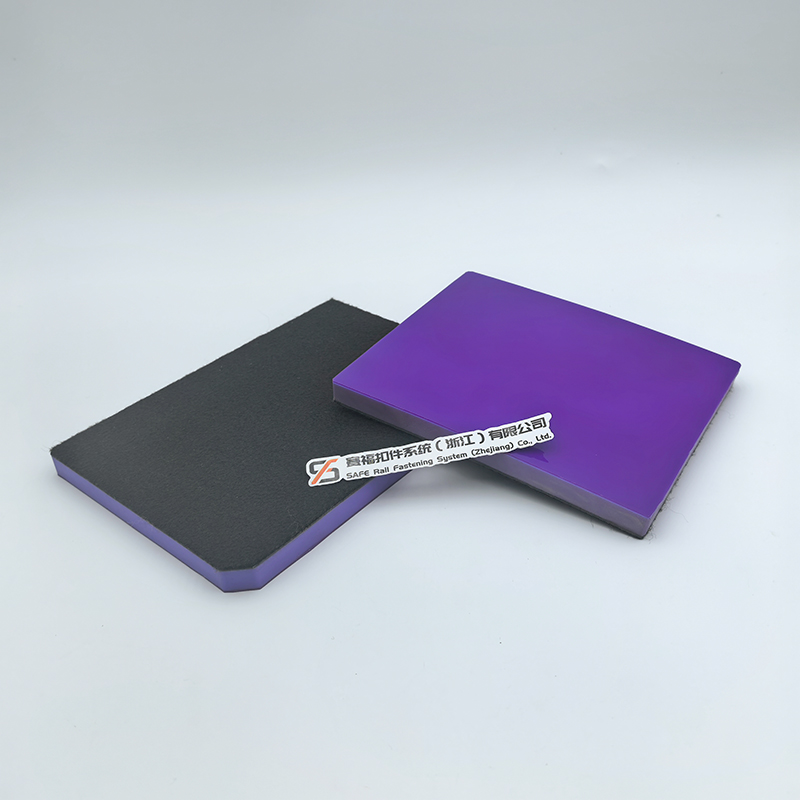

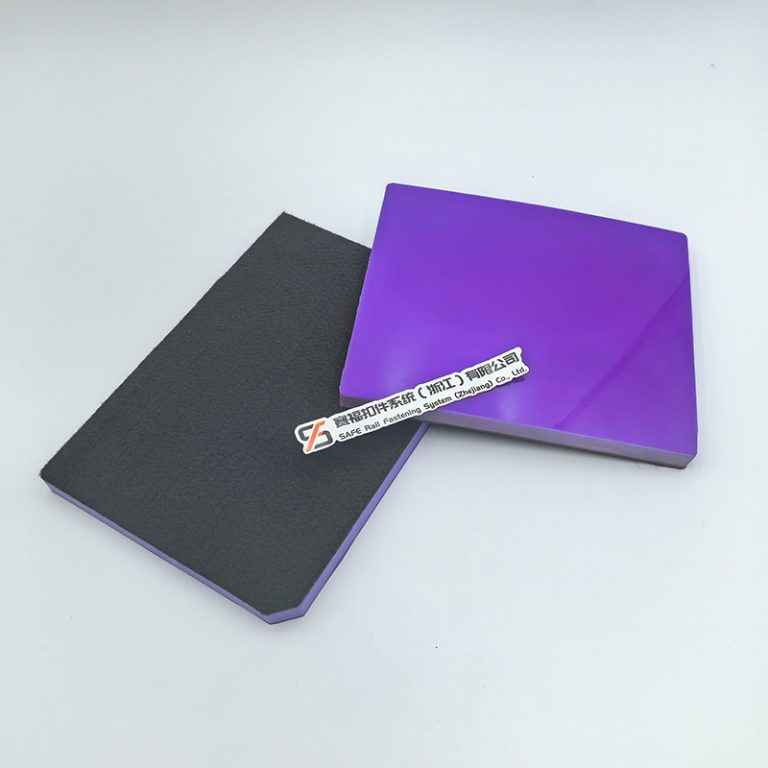

Under Sleeper Pad插图



Key features

Enables quick installation via factory pre-assembly on sleepers
Delivers controlled elasticity to the track superstructure



Specification: Customize

Datasheet from customer:

  • Material: cellular mixed-polyurethane (PUR) elastomer with elastoplastic properties, incorporating a mounting mesh for attachment to concrete sleepers.
  • Static stiffness Cstat:0.22N/mm
  • Thickness: 10mm
  • Tensile strength: ≥2.5 MPa
  • Bond strength by pull-out of pads on concrete sleeper: >0.3 MPa
  • Static bedding modulus Cstat between 0.01 and 0.10 USP on concrete block (approval): 0.360 N/mm³
  • Fatigue test of USP on concrete block
