Global rail networks grow quickly these days. They need strong setups to handle tough mechanical loads, especially in tough spots like curved tracks. Tight bends, sometimes with the smallest radius of just R80 m, create big engineering problems. Centrifugal forces and strong side pressures often cause rail gauge deviation. At SFFST, we lead as a top maker of railway gear and fastening setups. Our research team works hard to fix these key issues in the field. Our main product, the W12 Fastening System, tackles track wobbles head-on. It uses well-made parts like the SDU25 nylon-dowel and the ZW 687 rail pad. This setup gives full support for the solid structure and rider safety. In this post, we look at how the W12 Fastening System parts work together. We also show how SFFST stays ahead with our “Fastening Excellence, Entire Solution” approach.
Challenges of Gauge Maintenance in Curved Tracks
Mechanical Stress and Lateral Forces
Railway engineering faces big upkeep tasks in bendy parts of tracks. Trains going around curves push hard sideways on the rails. For paths with the tightest bend of R80m, these pushes get stronger. They put a heavy load on the clips that keep the rails steady. Without enough grip or side hold, rails move out of place. This starts what we call rail gauge deviation.
Industry Pain Points of Rail Gauge Deviation
Rail gauge deviation goes beyond simple fixes; it harms daily work a lot. When the space between rails changes too much, it speeds up damage to wheels and rails. In bad spots, this shift turns into “gauge expansion,” making rail spacing uneven.
Safety Implications of Sharp Curve Infrastructure
Safety drives all our work at SFFST. In tight bend setups, rail steadiness stops major breakdowns during fast runs or heavy loads. Old clip systems find it hard to mix firm gauge hold with track flex. That’s why we built the W12 Fastening System. It links strongly with the bend needed to take in moving forces in bends.
Engineering Excellence of the W12 Fastening System
Synergistic Design of Rail Gauge Baffles

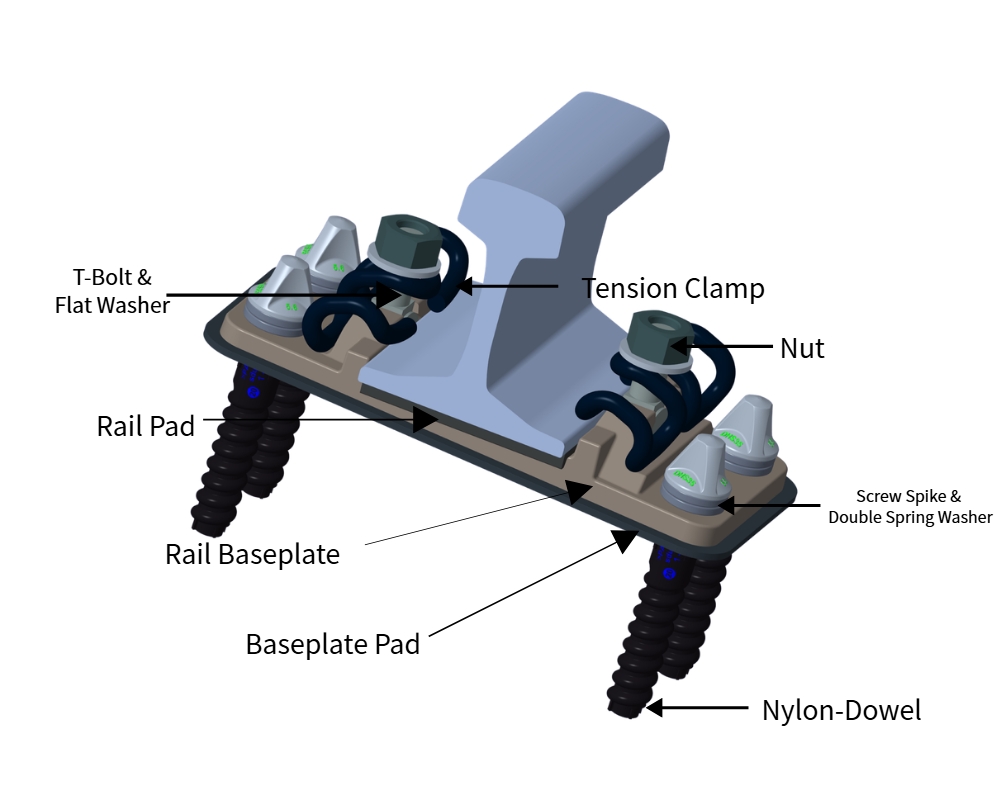

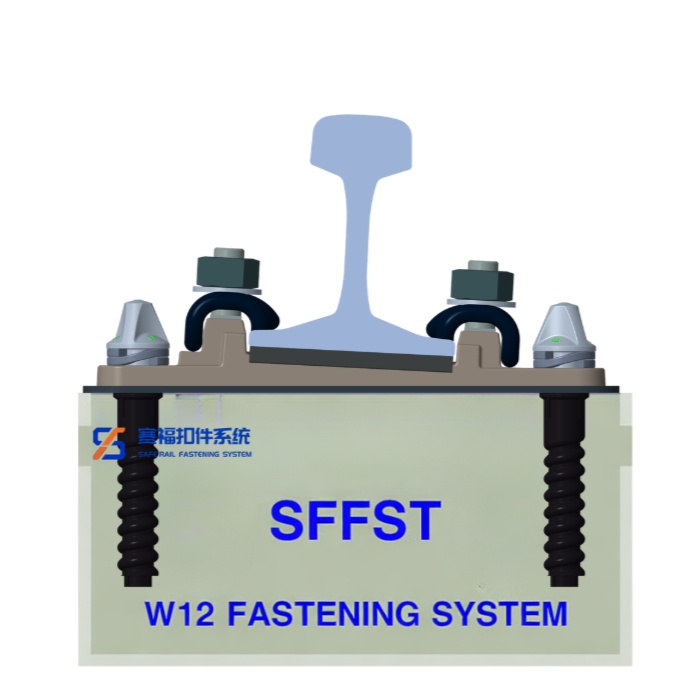

The W12 Fastening System works as a team where each piece matters. Key for side steadiness are the rail gauge baffles. We make these from metal or cast them in our dedicated Casting Production lines. There, we hit exact measures and steady build. The rail gauge baffles serve as the main spot for side force flow. They guide the outer push from the rail down to the sleeper or base slab.
Role of the SDU25 Nylon-Dowel in Stability
The SDU25 nylon-dowel (built-in dowel) locks the whole group in place. At SFFST, we use modern Injection Molding Production lines with full auto feed setups to craft these tough items. The SDU25 nylon dowel fits right into the concrete sleeper. It gives a safe spot for screw spikes.
Elasticity Benefits of the ZW 687 Rail Pad
Steadiness matters, but tracks that stay too stiff break early from tiredness. To fight that, our W12 Fastening System adds the ZW 687 rail pad, a solid, resilient tie pad. We form these on our Automatic Polyurethane Pouring Machine Production lines. They handle shake absorption and sound cuts well. The ZW 687 rail pad goes between the rail and baseplate. It adds the flex to shield concrete sleepers from wheel hits. This flex helps the W12 Fastening System last longer in bends.
Precision Control for Modern Railway Standards
Controlling Gauge Expansion to Within 6mm
In bend areas, the top measure for the W12 Fastening System is the holding gauge spread. The SKL tension clamp teams with the rail gauge baffles. Together, they keep the rail gauge spread at ≤6mm, even in tough R80m bends. This tight control keeps the track shape safe for way longer than usual setups.
Reducing Wear through Advanced Component Synergy
The teamwork in the W12 Fastening System cuts damage to rail tops and wheel edges. Steady gauge cuts the shaky train moves that cause rail bumps. Each item, from the SDU25 nylon-dowel to the rail gauge insulator, takes in power and spreads loads evenly.
Real-World Performance in Major Rail Projects

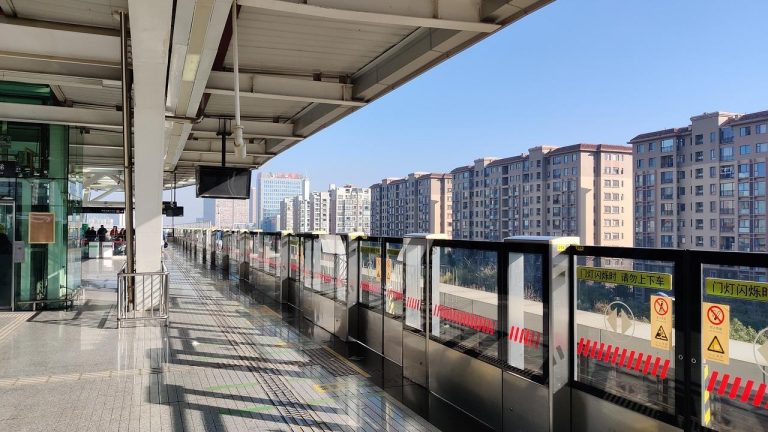

Case Study: Wuhan-Huangshi Intercity Railway
Real jobs show our fixes best. Take the Wuhan-Huangshi Intercity Railway project. It’s where SFFST helped a lot. In 2022, we sent strong railway parts, like railway rubber level crossings, to this key route. Plus, using setups like the W12 Fastening System in such city links proves we manage busy rider flows while holding tight gauge limits.
Proven Reliability in Minimum Radius R80m Curves
Our skills reach beyond fast lines. We handle city transit and subway nets where tight bends can’t be skipped. The W12 Fastening System fits well in jobs with the smallest radius bends (R80 m). It gives a firm base for subway paths in places like Chengdu. For the Chengdu Metro Line 17 Project, we supplied as a key partner. We built fresh fixes, proving our push for new ideas in bend track spots.
Operational Success Across Global Metro Networks
With more than 40 years in the game, SFFST serves world markets, from Thailand and Malaysia to Morocco. Our EPC+M+O (Engineering, Procurement, Construction, Management, and Operation) way lets us bring global teams back at every step. Be it the Morocco Kenitra-Marrakech High-Speed Railway Project or city rail in Southeast Asia, our W12 Fastening System earns nods for its fit and trust.
Why Professionals Choose SFFST Solutions
Rigorous Testing in Advanced SFFST Laboratories
We back our quality with facts from our top laboratory. It has a Metal Lab, Non-metal Lab, and ASSEMBLY TESTING Lab.
Adherence to International Quality and Safety Standards
Our drive for top work comes with world approvals. We stick to ISO 9001, ISO 14001, and ISO 45001 rules. Our goods get CRCC certified.
Comprehensive EPC+M+O Support for Global Clients
As a full-service ally, SFFST gives over just parts. Our EPC+M+O full package runs from the first fastening system design and advice to site build help and staff drills. We run a Global Service Network with round-the-clock tech aid. This keeps your clip systems running smoothly and safely.
Conclusion
The W12 Fastening System shows SFFST’s pledge to “Fastening Excellence, Entire Solution”. It fixes the key problem of rail gauge deviation in curved tracks with smart parts like the SDU25 nylon-dowel and ZW 687 rail pad. The result is a setup with a firm build and needed flex.
Contact SFFST today to discover how our W12 Fastening System can optimize your next curved track project and ensure long-term rail stability.
FAQ
Q: What causes rail gauge deviation in curved tracks?
A: Gauge deviation comes mainly from strong side forces and spin pressure from trains on tight bends. These can wear parts, shift rails, and change structure over time if the clip setup lacks strength.
Q: How does the W12 Fastening System control gauge expansion?
A: The W12 Fastening System uses a team that builds with tough rail gauge baffles, the SDU25 nylon-dowel, and strong-pull SKL tension clamps. They lock the rail firm, holding spread to ≤6mm even in R80m bends.
Q: How does SFFST ensure the quality of its components?
A: We run special auto build lines and top labs with over 100 test tools. We follow ISO and CRCC rules. We run full checks for tiredness, hits, and material checks on each part.
