In the high-stakes world of global logistics, heavy-haul railways serve as the skeletal framework for industrial growth, transporting massive quantities of coal, ore, and minerals across vast distances. However, the relentless pressure of extreme axle load and high-frequency impacts presents a significant challenge to track stability. At SFFST, we specialize in engineering high-performance rail fastening systems designed to withstand these brutal conditions. SFFST provides comprehensive solutions that mitigate wear and prevent system failure. Our mission is to ensure that even the heaviest freight moves safely and efficiently, leveraging our state-of-the-art production lines and rigorous testing protocols to deliver “Fastening Excellence”.
Understanding Heavy-Haul Rail Challenges
The Impact of Extreme Axle Loads
Heavy-haul railways are defined by their capacity to carry immense weight, often requiring a fastening system that can support axle loads exceeding 30 tons. Under such extreme pressure, the rail experiences significant vertical and lateral forces that threaten the integrity of the entire track structure. At SFFST, we recognize that standard fasteners are often insufficient for these demands, leading us to develop specialized solutions like the S30HH Fastening System and W14HH Fastening System specifically for heavy-duty freight environments.
Common Fastening System Failure Modes
In terms of heavy hauls, the usual problems are loosening of the bolts, breaking of tension clamps because of fatigue, and quick deterioration of the rail pad. If a fastener is not able to exert proper tension on the clamps, the rail may move, resulting in gauge widening and possibly derailment. It is evident that high vibration frequencies created by heavy freight trains can hasten the deterioration process of components, thus requiring the selection of high-quality materials.
Addressing Wear and High-Frequency Vibration
The interaction between heavy wheels and the rail generates intense vibrations that can lead to “signal leakage” and component fatigue if not properly managed. Our research at SFFST focuses on creating resilient components that absorb these shocks. By utilizing advanced materials in our Resilient Tie Pad and Elastic Pad, we provide a damping effect that protects the concrete sleeper and maintains the stability of the heavy‑haul rail track even under continuous, high-impact use.
Engineering the SFFST Heavy-Haul Solution
Structural Integrity for Heavy Freight
Our heavy-haul solutions are built on a foundation of structural stability. We offer an EPC+M+O entire solution, ensuring that every stage of the project—from initial design to daily maintenance—is optimized for extreme conditions. For instance, our WJ-12 Fastening System is designed as a one-stop solution for modern railway projects, providing the necessary strength to handle the high longitudinal resistance required by heavy freight lines.
Premium Materials for Harsh Environments
We ensure outstanding product performance by sourcing raw materials from reputable domestic and international suppliers. Our metal parts, such as the SKL Tension Clamp, are manufactured using high-grade spring steel that undergoes a fully automated process of cutting, heating, molding, quenching, and tempering to ensure maximum durability. For non-metal parts, our Automatic Polyurethane Pouring Machine Production lines produce high-strength baseplate pads and rail pads that offer superior compression resistance.
Core Components of SFFST Systems

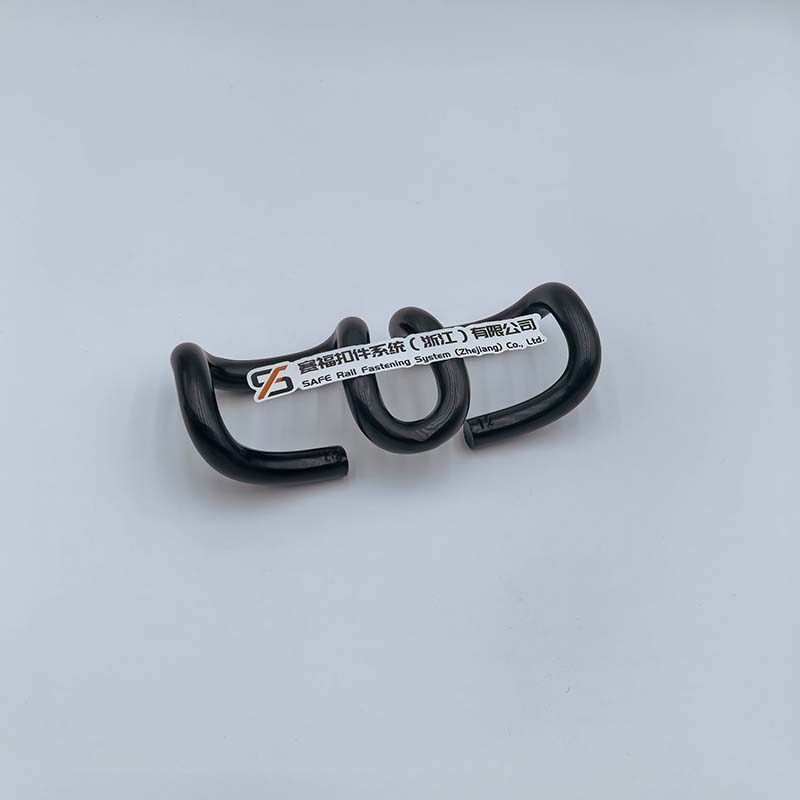

High-Strength SFFST Tension Clamps
The tension clamp is the heart of the fastening system. We produce a wide variety of these components, including the W-Tension Clamp, e-Clip, Fast-Clip, k-type Clip, and the Nabla Blade. Our SKL Tension Clamp is particularly effective in preventing track deformation by providing a consistent and high clamp force that secures the rail firmly to the sleeper, even when subjected to the lateral thrust of a 30-ton axle load.
Durable SFFST Rail Tie Plate and Cast Shoulder
To distribute the heavy loads of freight trains across the sleepers, our Rail Tie Plate (or Rail Baseplate) and Cast Shoulder are essential. These casting parts are produced on highly efficient production lines where the quality is stable, and the dimensions are precise. The Cast Shoulder provides the necessary lateral restraint to maintain track gauge, while the Rail Tie Plate ensures a flat, secure mounting surface for the rail.

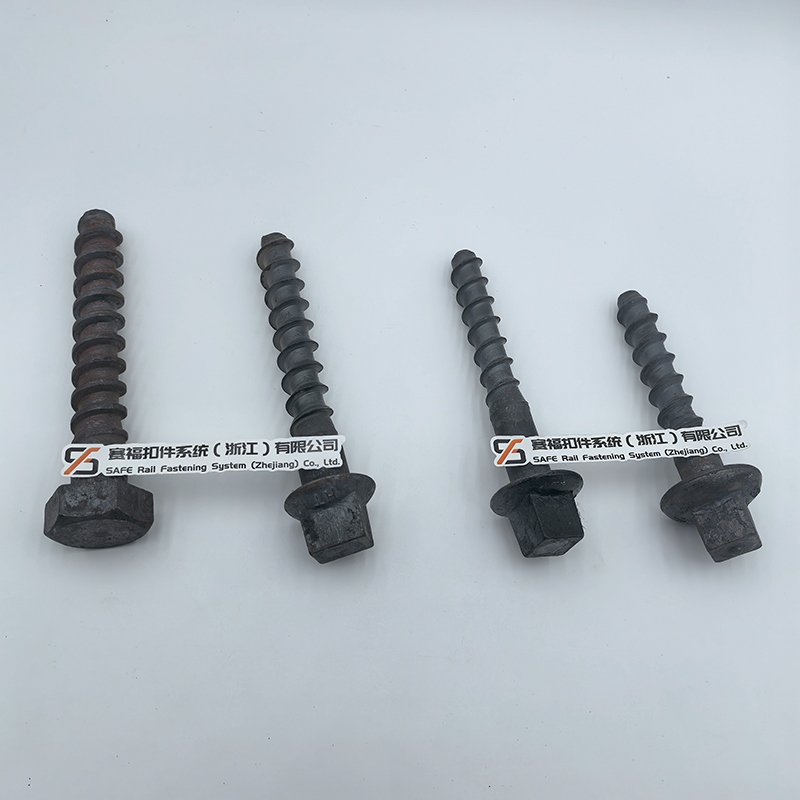

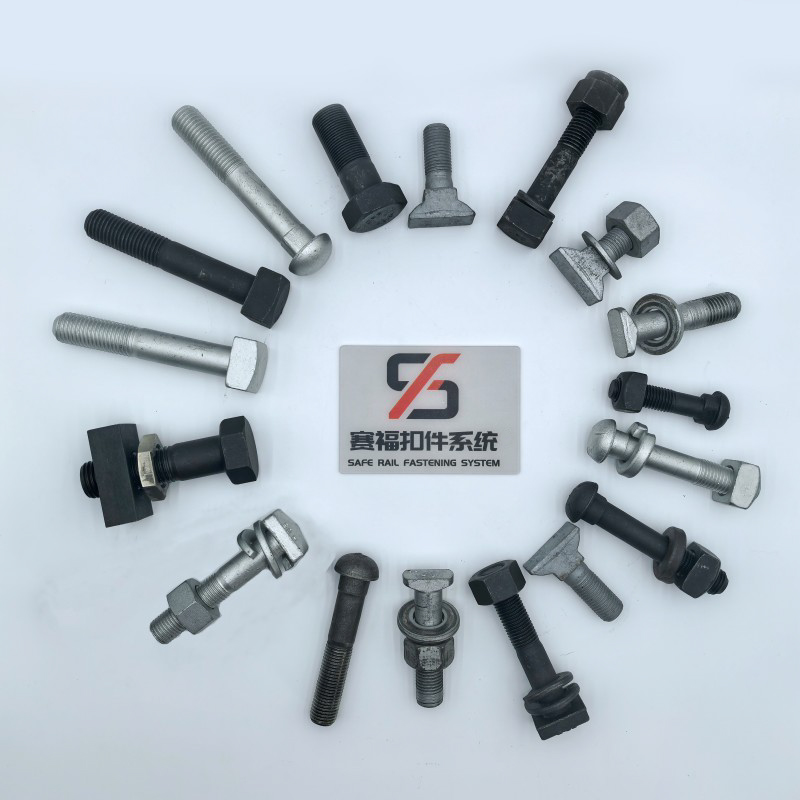

Precision SFFST Bolt and Spike Solutions
A fastening system is only as strong as its smallest components. Our SPIKE & NUT & BOLT & WASHER Production lines are highly automated to ensure that every bolt and spike meets rigorous standards. We offer high-performance Bolts and Spikes that are designed to resist over-tightening risks and maintain their torque over time, which is critical for preventing the loosening of fasteners on high-vibration heavy-haul lines.
Superior Performance Metrics of SFFST
Optimizing Clamp Force for Stability
At SFFST, we understand that maintaining the correct clamp force is the primary defense against rail creep and gauge widening. Our systems are designed to provide high initial tension while remaining flexible enough to accommodate the natural thermal expansion and contraction of the rails. This balance is achieved through the precise geometry of our SKL Tension Clamps and the high-tensile strength of our Bolts.
Rigorous Testing at SFFST Labs
Reliability is not assumed; it is proven. Our SFFST Labs are equipped with advanced testing equipment, including the MTS Servo-Hydraulic Testing System (25T) and the Electro-Hydraulic Servo Rail Clip Fatigue Testing Machine (100T). We conduct track fastener longitudinal resistance testing and drop hammer impact tests to simulate the most extreme conditions a heavy‑haul rail might face, ensuring that every SFFST product meets international standards like ISO 9001 and CRCC.
Proven Success in Global Projects
Reliability in Fenghong and Jingshen Projects
Our real-world performance is best demonstrated by our project history. In 2023, SFFST supplied 130,000 sets of high-performance heavy-haul railway fastening systems to the Fenghong and Jingshen Railway project in Shaanxi. These lines carry massive loads daily, and our fasteners have proven their durability by maintaining track integrity and reducing the need for frequent maintenance.
SFFST Contribution to Heavy-Haul Efficiency
By reducing component failure and extending the maintenance cycle, SFFST significantly lowers the total cost of ownership for heavy-haul operators. Our automated production lines, such as those for Nabla Blade manufacturing, ensure precision and consistency, which translates to fewer track slowdowns and higher throughput for global freight networks.
Conclusion
Building a resilient heavy-haul infrastructure requires more than just standard components; it demands a synergy of material science and mechanical precision. At SFFST, we have demonstrated through rigorous testing and successful global applications—such as the Fenghong and Jingshen Railway project—that our heavy‑haul rail solutions are built for the toughest challenges. By focusing on high clamp force, superior anti‑deformation, and robust components like the Cast Shoulder and Rail Tie Plate, we ensure the long-term safety and efficiency of rail networks. Whether it is the S30HH Fastening System or our custom OEM/ODM solutions, we provide the stability your extreme axle load requirements demand. Trust SFFST to be your one-stop partner for reliable and innovative rail fastening solutions.
Contact SFFST today to discover how our premium rail fastening systems can optimize your next heavy-haul project.
FAQ
Q: Why is clamp force critical for heavy-haul rail?
A: High clamp force is essential to prevent rail longitudinal movement and to maintain the structural integrity of the track under high-impact loads. SFFST designs its tension clamps, such as the Nabla Blade and SKL Tension Clamp, to provide consistent pressure, reducing the risk of component loosening and enhancing overall safety even in high-vibration environments.
Q: How does SFFST prevent fastening system failure?
A: SFFST prevents failure through a combination of precision manufacturing and rigorous testing at our SFFST Labs. By using high-grade materials for the Bolt, Spike, and Rail Tie Plate, we ensure each component has superior anti‑deformation properties. Additionally, our systems undergo fatigue testing on the Electro-Hydraulic Servo Rail Clip Fatigue Testing Machine to ensure they can withstand millions of cycles of heavy freight traffic.
Q: Can SFFST provide customized solutions for heavy-haul lines?
A: Yes, SFFST offers a complete EPC+M+O solution and OEM/ODM services, which include customized design and engineering for specific project needs. Whether it is adjusting the Cast Shoulder dimensions or optimizing the entire fastening system for noise and vibration damping, our R&D center works to meet unique environmental and load challenges.
