Two of the most significant challenges for rail operators worldwide are rising maintenance costs and increased concerns regarding noise and vibration in populated areas. Traditional track systems are prone to ballast degradation, uneven load distribution, and excessive sleeper wear. Under sleeper pads (USPs) provide an excellent remedy by adding elasticity, fostering improved load distribution, and protecting track components—a necessity for modern rail systems.
What Is an Under Sleeper Pad (USP)?
An under sleeper pad is a thick elastic layer inserted between the sleeper (railway tie) and the ballast bed. The USP, acting like a shock absorber, reduces dynamic forces caused by passing trains and spares sleepers and ballast from wear and tear.
Where Are USPs Installed?
USPs are positioned directly beneath the sleepers, forming a layer of cushioning between the ballast stones and the sleeper base. In this position, they can absorb vertical and horizontal loads, helping to maintain track geometry over time.
What Materials Are Used?
Most USPs are made of polyurethane or rubber materials, chosen for their resistance to weathering, flexibility, and durability. Advanced polymer designs—like those of SAFE—have high vibration damping, low water absorption, and long service life, which makes them ideal for both urban transit and heavy-haul routes.
How Do Under Sleeper Pads Improve Track Stability?
Adding Elasticity and Flexibility
Low elasticity tracks pass on excessive stress to ballast and subgrade layers, leading to early failure. USPs provide controlled flexibility, allowing the track to “breathe” under dynamic loading while continuing to maintain alignment and safety.
Redistributing Train Loads
Passing traffic causes severe loads on sleepers and ballast. Without a proper distribution of loads, stress concentrations can initiate cracks in sleepers and ballast breakdown quickly. USPs share such loads evenly across the trackbed, reducing localized deterioration.
Protection of Ballast from Degradation
Ballast also progressively degrades under cyclic load, losing interlocking and drainage capacity. USPs create a shielding layer, reducing crushing and contamination and thus minimizing ballast fouling and maintenance intervals.
Reduction of Vibration and Noise
By absorbing some of the wheel-rail impact energy, USPs significantly reduce the magnitude of vibration entering the surrounding infrastructure. In urban rail systems, they also lower noise levels, improving environmental compatibility and passenger comfort.
Benefits for Long-Term Track Durability
Reduced Maintenance Costs Over Time
By preserving ballast condition and minimizing component wear, USPs significantly lower routine maintenance needs such as tamping or sleeper replacement. This translates to lower lifecycle costs for railway operators—a tremendous benefit, especially on high-traffic lines. SAFE’s long-life polymer formulations ensure that our products keep their performance characteristics over extended durations, making them suitable even under heavy loading conditions.
Improved Ride Comfort and Safety
Greater elasticity gives rise to more comfortable train rides with less jolting as a consequence of rough tracks or degraded components. This not only contributes to passenger comfort but also reduces stress on rolling stock equipment like wheels and bogies—directly contributing to operational safety.
Extended Service Life of Track Components
Sleeper cracking, rail seat abrasion, and fastener loosening are common issues that high-impact forces between the sleeper-ballast interface have a tendency to create. By essentially cushioning these impacts, USPs help to extend the service life of all the elements involved—including the rails themselves. With our products, we offer solutions for heavy haul freight lines, specifically where durability is of the utmost importance.
SAFE’s Experience in the Manufacturing of USPs
Who Is SAFE and What Do We Do?
At SAFE, we specialize in manufacturing advanced rail fastening systems with non-metallic parts like under-sleeper pads that are designed for vibration isolation and long-term performance enhancement. With years of experience in the field, we emphasize engineering excellence backed by rigorous testing standards. Our whole product lineup is available at our company website, where you can go through the complete specifications of each model that we manufacture.
Features That Make SAFE’s USPs Reliable
Our USP models are precision mold-designed for dimensional stability in large series production. The key characteristics include:
- Extremely high aging resistance.
- Excellent fatigue performance.
- Water-repellent surfaces.
- Application-specific adjustable stiffness levels.
Each item is subjected to intense laboratory tests such as fatigue resistance testing with over 5 million load cycles—a standard few competitors regularly equal.
Applications for Different Rail Systems
From urban metros to freight corridors to high-speed intercity railways—our USPs are applied in diverse conditions worldwide. Whether maximizing comfort in urban rail systems or contributing to robustness on heavy-haul mine lines, we have a solution ready to install or modifiable for every use.
Choosing the Perfect USP Solution
Considerations for Choosing a USP
When choosing an under-sleeper pad solution, several factors need to be kept in mind:
- Type of traffic (passenger vs freight).
- Axle load requirements.
- Expected maintenance intervals.
- Environmental exposures (temperature range, moisture levels).
We’re here to assist clients in testing these parameters under simulations and field tests before making a final selection.
Available Customization Options from SAFE

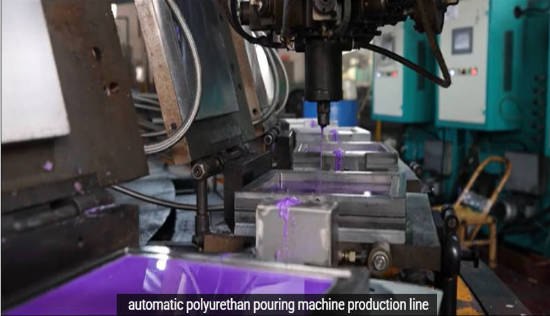

No two rail projects are identical, which is the reason we offer custom engineering services along with standard product lines, such as Automatic Polyurethane Pouring Machine Production lines. Require custom mechanical properties or special thicknesses—we’re here to assist you in achieving your project goals with precision manufacturing capabilities.
Conclusion: Building Stable and Long-Lasting Tracks with USPs
Under sleeper pads are no longer a luxury—they are an established, cost-effective way of enhancing track stability, reducing maintenance, and extending the service life of important rail infrastructure. Whether you are designing a new railway line or enhancing existing tracks, SAFE delivers reliable USP solutions tailored to your needs. Contact us today and learn how our advanced pads can help take your rail project forward.
FAQ
Q: Is it possible to retrofit tracks with SAFE’s under sleeper pads?
A: Yes! The majority of our models are suitable for both new installation and retrofitting applications based on site conditions.
Q: What is the normal life of your USPs?
A: Our products are designed with service lives exceeding 20 years under normal operating conditions because they have high-strength elastomer formulations.
Q: Do you have products suitable for extreme climates?
A: Absolutely—we provide solutions tested against both low-temperature brittleness (-40°C) and high-temperature deformation (+70°C).
